Liberty Pumps

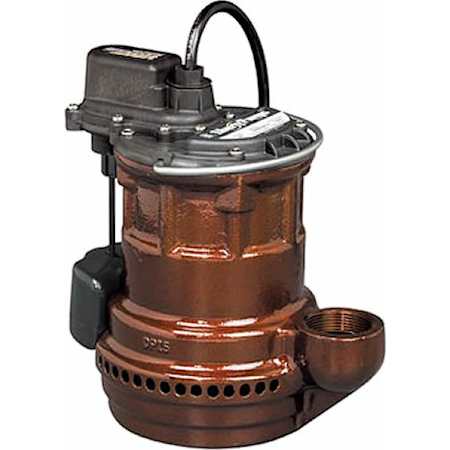

Liberty Pumps 1/4 HP Cast Iron Submersible Sump Pump with Vertical Float Switch N/A
Liberty Pumps 1/4 HP Cast Iron Submersible Sump Pump with Vertical Float Switch N/A
Alternate Image

Liberty Pumps 1/4 HP Cast Iron Submersible Sump Pump with Vertical Float Switch

Model: 247
|
Item: bci5171542

$201.75
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 9 weeks
-
Return & Shipping Details

Details

Features:

  • Automatic Submersible Cast Iron Sump Pump: A "workhorse" designed for years of reliable operation

  • Liberty's UNI-BODY Casting w/ Epoxy Coated Powder Coat Finish: A solid, one-piece housing that eliminates lower motor seal

  • Magnetically Operated Vertical Float Switch: Provides automatic operation in sump pits as small as 10-inches

  • Rugged, Energy Efficient and Thermally Protected 1/4 HP Motor: Hermetically sealed, permanently lubricated design

  • 8-Vane, Glass Reinforced Thermoplastic Impeller: Non-cloggy design for superior solid handling (up to 1/4")

  • High Capacity 1-1/2" Discharge: Will replace most pumps without any plumbing changes

  • Quick-Disconnect 10' Standard Power Cord: Allows for easy replacement of cord without breaking motor seals

  • Non-Corrosive Stainless Steel Fasteners: Increases the lifespan of the pump even in the harshest sump pits

  • 416 Stainless Steel Rotor Shaft: With permanently lubricated bearings for extended pump life

  • 3-Year Limited Warranty

Additional Liberty Pumps Links

Manufacturer Resources

Owners ManualSpecification Sheet

Dimensions and Measurements

Cord Length
8 in.
Discharge Diameter
1.5 in.
Height
10 in.
Product Weight
10 lbs.
Width
5.75 in.

Dimensions and Measurements

Cord Length
8 in.
Discharge Diameter
1.5 in.
Height
10 in.
Product Weight
10 lbs.
Width
5.75 in.

Characteristics and Features

Base Material
Iron
Float Type
Vertical Switch
Housing Material
Cast Iron
Impeller Material
Plastic
Manual Override
No

Characteristics and Features

Base Material
Iron
Float Type
Vertical Switch
Housing Material
Cast Iron
Impeller Material
Plastic
Manual Override
No

Electrical and Operational Information

Amperage
3
Backup GPH @ 0 feet
2040 GPH
Backup GPH @ 10 feet
1440 GPH
Backup GPH @ 15 feet
900 GPH
Backup GPH @ 5 feet
1800 GPH
Horsepower
0.25
Voltage
120

Electrical and Operational Information

Amperage
3
Backup GPH @ 0 feet
2040 GPH
Backup GPH @ 10 feet
1440 GPH
Backup GPH @ 15 feet
900 GPH
Backup GPH @ 5 feet
1800 GPH
Horsepower
0.25
Voltage
120

Warranty and Product Information

Manufacturer Warranty
1

Warranty and Product Information

Manufacturer Warranty
1
