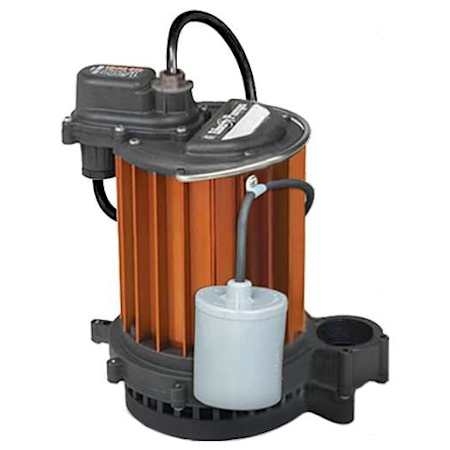

Liberty Pumps 1/3 HP Aluminum Submersible Sump Pump with Piggyback Tether Float
Model: 233|Item: bci5171521
Details
Features:
- Automatic Aluminum/Polypropylene Sump Pump: A superior value for average water removal
- Deep Finned Powder Coated Aluminum Motor Housing: Provides 225% more cooling capacity than cast iron housings
- Quick-Disconnect Wide Angle Piggyback Tether Float Switch: Provides automatic operation in sump pits as small as 14-inches
- Rugged and Thermally Protected 1/3 HP Motor: Hermetically sealed, permanently lubricated design
- High-Temperature, Engineered Polymer Impeller: Vortex style design for superior solid handling
- High Capacity 1-1/2" Discharge: Will replace most pumps without any plumbing changes
- Quick-Disconnect 10' Standard Power Cord: Allows for easy replacement of cord without breaking motor seals
- Removable Pump Base: Allows for suction down to 1/8"
- Non-Corrosive Stainless Steel Fasteners and Rotor Shaft
- Increases the lifespan of the pump even in the harshest sump pits
- Permanently lubricated upper/lower bearings for extended life
- 3-Year Limited Warranty
Dimensions and Measurements
Cord Length | 25 in. |
Discharge Diameter | 1.5, 2 in. |
Flow Rate by Feet of Head | 1140 gal / 15 ft, 2640 gal / 0 ft, 240 gal / 20 ft, 1800 gal / 10 ft, 2220 gal / 5 ft |
Height | 10.5 in. |
Length | 10.72 in. |
Min Float Off | 4 in. |
Min Float On | 10 in. |
Product Weight | 11 lbs. |
Width | 6.5 in. |
Dimensions and Measurements
Cord Length | 25 in. |
Discharge Diameter | 1.5, 2 in. |
Flow Rate by Feet of Head | 1140 gal / 15 ft, 2640 gal / 0 ft, 240 gal / 20 ft, 1800 gal / 10 ft, 2220 gal / 5 ft |
Height | 10.5 in. |
Length | 10.72 in. |
Min Float Off | 4 in. |
Min Float On | 10 in. |
Product Weight | 11 lbs. |
Width | 6.5 in. |
Included Components
Built-In Check Valve | No |
Included Components
Built-In Check Valve | No |
Characteristics and Features
Automatic | No |
Base Material | Plastic |
Float Type | Tether Switch |
Housing Material | Aluminum |
Impeller Material | Composite |
Manual Override | Yes |
Shutoff Head in Feet | 37 |
Solid Handling | 3/8 Inch |
Characteristics and Features
Automatic | No |
Base Material | Plastic |
Float Type | Tether Switch |
Housing Material | Aluminum |
Impeller Material | Composite |
Manual Override | Yes |
Shutoff Head in Feet | 37 |
Solid Handling | 3/8 Inch |
Electrical and Operational Information
Amperage | 5.2 |
Backup GPH @ 0 feet | 2640 GPH |
Backup GPH @ 10 feet | 1800 GPH |
Backup GPH @ 15 feet | 1140 GPH |
Backup GPH @ 20 feet | 240 GPH |
Backup GPH @ 5 feet | 2220 GPH |
Horsepower | 0.33 |
Starting Amps | 8 Amps |
Voltage | 120 |
Electrical and Operational Information
Amperage | 5.2 |
Backup GPH @ 0 feet | 2640 GPH |
Backup GPH @ 10 feet | 1800 GPH |
Backup GPH @ 15 feet | 1140 GPH |
Backup GPH @ 20 feet | 240 GPH |
Backup GPH @ 5 feet | 2220 GPH |
Horsepower | 0.33 |
Starting Amps | 8 Amps |
Voltage | 120 |
Warranty and Product Information
Manufacturer Warranty | 3 |
Warranty and Product Information
Manufacturer Warranty | 3 |
