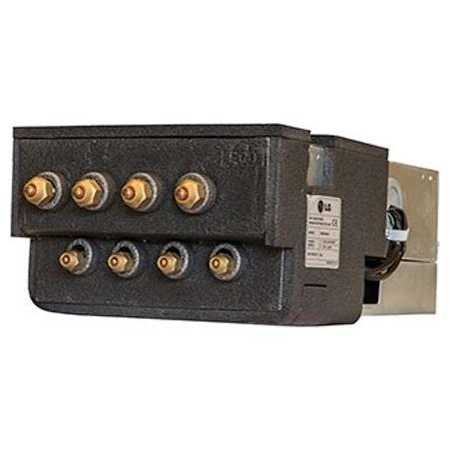

LG 4 Port Branch Box with Alternative Primary Port Size for Indoor Mini Split Condensers

The PMBD3641 is a four port branch distribution unit for select LG Multi F mini split outdoor condensers. A branch distribution unit is required to provide power, communication, and refrigerant flow from the condenser to Multi F mini split indoor units.

Product Information:

Alternative Port Layout
• LG's standard brand distribution ports are 1/4" x 3/8" with a maximum capacity of 24,000 BTU. This unit features a single alternative 3/8" x 5/8" port that supports up to 36,000 BTU for multi zone applications that require a high capacity indoor unit.
Simple Installation
• This branch distribution unit features flared joints to improve the speed and ease of installation.
Product Compatible With
• LG LMU360HV Mini Split Outdoor Condenser
• LG LMU420HV Mini Split Outdoor Condenser
• LG LMU361HHV Mini Split Outdoor Condenser
• LG LMU480HV Mini Split Outdoor Condenser
• LG LMU421HHV Mini Split Outdoor Condenser
• LG LMU540HV Mini Split Outdoor Condenser
• LG LMU480HHV Mini Split Outdoor Condenser
• LG LMU483HV Mini Split Outdoor Condenser
• LG LMU600HV Mini Split Outdoor Condenser
• LG LMU543HV Mini Split Outdoor Condenser
• LG LMU601HV Mini Split Outdoor Condenser

Specifications:

• Product Category: Mini Split Air Conditioner Accessory
• Type: Branch Boxes
• Width: 9-7/8"
• Length: 11-13/16
• Product Weight: 16 lbs.
