LG Multi F Series 12K BTU Cooling / 16K BTU Heating 19.4 SEER One Zone Concealed Duct Mini Split Package

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

Indoor evaporator unit only, outdoor condenser required for proper functionality. For questions or assistance building a multi-zone system, please call (855) 484-3292 to speak to one of our experts.

LG's devotion to providing efficient ductless solutions can be seen across the Multi F line of indoor units. LG's Concealed Duct systems, such as this LD127HV4, have several advantages over wall mounted systems. The LDN127HV4 is a mini split indoor unit designed for installation is short-run ducting with low static pressures. If you're looking for a low-profile alternative to wall mounted ductless heat pump systems, LG's Low-Static Concealed Duct units are a great choice.

Special Features:

• Inverter Technology: LG's ductless heat pump systems are designed with powerful, efficient inverter technology. An electronic expansion valve and a variable speed condenser carefully regulate the refrigerant flow and reduce energy consumption.

• Gold Fin Protection: To ensure the reliability and longevity of the LUU127HV4's heat exchanger, LG employs a Gold Fin coating that protects against corrosion and improves durability.

• Quiet Design: The LDN127HV4 can operate at volumes as low as 23 dB thanks to its advanced fan motor. The brushless direct current motor reduces electrical and mechanical sound while providing powerful air movement.

• Automated Operation: Auto operation mode continually compares your zone's current and desired temperatures and uses that data to intelligently adjust the unit's fan speed and refrigerant flow to provide optimal comfort.

• Condensate Protection: Condensate overflow can damage your indoor unit and your home. An internal condensate pump with 27.5" of lift and automatic overflow shutoff protects the LDN127HV4 through reliable, effective condensate removal.

• Sleep Mode: With the sleep mode and timer functions, you can set this indoor unit to save energy at night. Sleep mode will incrementally adjust temperature for an hour before the timer function automatically deactivates the unit.

• Improved Air Quality: The LDN127HV4 features an anti-fungal filter to keep your air clean. This filter captures contaminants like dust and bacteria, and it is washable to ensure long term air quality.

• Hot Start: When the hot start function is enabled, the LDN127HV4's fan will not engage until the outdoor condenser has had the opportunity to warm the indoor coil. This prevents the unit from blowing cold air during heating operations.

• Dehumidify: LG's mini split indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.

Product Assurance:

• Manufacturer Warranty: 5 Year Limited

Required Components:

• Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
• Drain Line: The drain line removes the condensate from your system. It connects your system to the drain location of your choosing
• Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser

Specifications:

PZCWRC1

• Length: 396"
• Product Weight: 0.25 lbs.

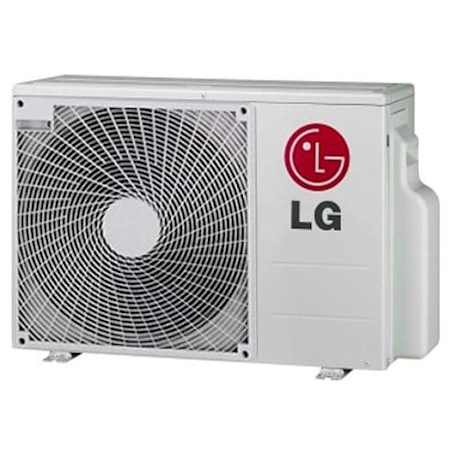

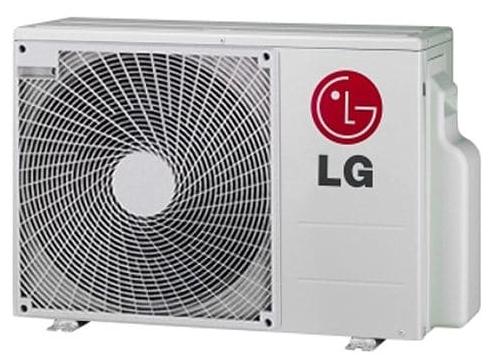

LUU127HV

• Cooling BTU Capacity: 12000
• Sound Level: 52 dB
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -4 F
• Minimum Outdoor Temperature for Cooling: 0 F
• Liquid Line Connection Size: 1/4" Inch
• Depth: 13-15/16"
• Height: 21-1/2"
• Width: 34"
• Recommended Breaker Size: 15 A
• Voltage: 208, 230V

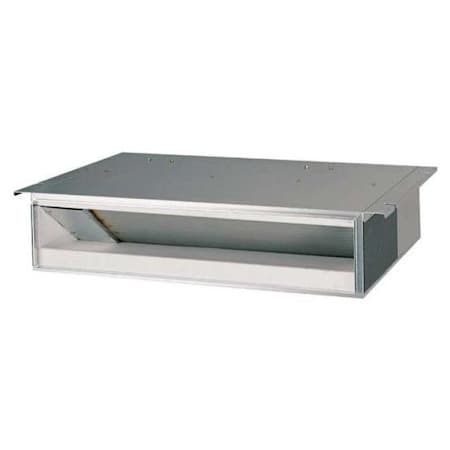

LDN127HV4

• Zone Cooling BTU: 12000
• Zone Heating BTU: 13800
• Cooling Area: 550 Sq. Ft.
• Sound Level: 27 to 31 dB
• Liquid Line Connection Size: 1/4" Inch
• Gas Line Connection Size: 3/8" Inch
• Depth: 27-9/16"
• Height: 7-1/2"
• Width: 38-3/8"
• Voltage: 208, 230V

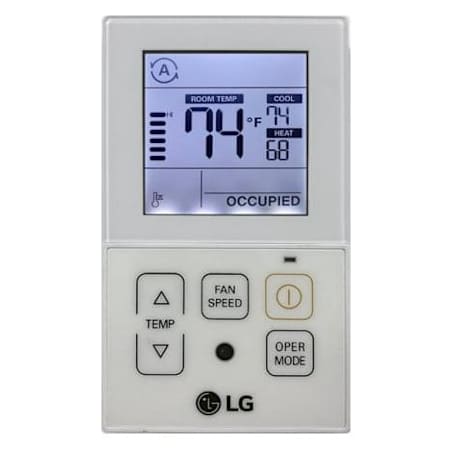

PREMTC00U

• Width: 5/8"
• Length: 4-3/4"
• Depth: 2-3/4"
• Product Weight: 0.18 lbs.
