The LG L3H30D12121200-A has been discontinued

** See similar or replacement items below **

LG
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Item # bci3316703

LG Multi F Series 30K BTU Cooling / 32K BTU Heating 18.5 SEER2 Three Zone Concealed Duct Mini Split Package with (3) 12k BTU Indoor Units

Model: L3H30D12121200-A
|
Item: bci3316703

Discontinued

We still have product details and accessories, scroll down to see them!

Discontinued

We still have product details and accessories, scroll down to see them!

Details

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

For questions or assistance, please call (855) 484-3292 to speak to one of our experts.

LG's devotion to providing efficient ductless solutions can be seen across the Multi F line. This concealed duct ductless heat pump system pairs a powerful LMU303HV outdoor condenser with three concealed duct indoor units. These units are designed for installation in short-run ducting with low static pressures. With this system, you can add quiet zoned comfort to your home without mounting anything on your walls. Like a central system, small air registers are all that your guests will see with this concealed duct heat pump system.

Special Features:

  • Inverter Technology: LG's outdoor condensers are designed with efficient inverter technology. An electronic expansion valve and a variable speed compressor carefully regulate the refrigerant flow, reducing energy consumption and allowing for consistent, accurate temperatures.
  • Gold Fin Protection: To ensure the reliability and longevity of the LMU303HV's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.
  • Quiet Design: Thanks to brushless fan motors, both the outdoor and indoor units in this system produce less mechanical and electrical noise. A twin rotary compressor in the outdoor unit also limits vibration noise.
  • Automated Operation: Auto operation mode continually compares your zones' current and desired temperatures and uses that data to intelligently adjust fan speed and refrigerant flow to provide optimal comfort.
  • Sleep Mode: With the sleep mode and timer functions, you can set the indoor units to save energy at night. Sleep mode will incrementally adjust temperatures for an hour before the timer function automatically deactivates the units.
  • Dehumidify: LG's mini split indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.

Product Assurance:

  • Certifications:
    • ETL
    • ISO
  • Performance and Efficiency:
    • SEER: 18.2
    • SEER2: 18.5
    • HSPF: 9.7
    • HSPF2: 8.8
    • EER: 11
  • Manufacturer Warranty: 5 Year Limited

Required Components:

  • Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
  • Drain Line: The drain line removes the condensate from your system. It connects your system to the drain location of your choosing
  • Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser
  • Disconnect Box and Electrical Whip Kit: The disconnect box and whip kit gives an easy way to connect your outdoor condenser to your fuse box
  • Base Pan Heater (Optional): The base pan heater stops ice from building up on the outdoor unit, preventing performance degradation and potential damage
  • Outdoor Condenser Plastic Pad (Optional): An outdoor condenser pad provides an even surface on which to place your outdoor condenser
  • Wall Bracket (Optional): A wall bracket provides a way to mount your outdoor condenser off the ground to keep it clear it of debris

Recommended Components:

  • Recommended line set sizes for indoor unit connectivity:
  • LDN127HV4: 1/4" x 3/8" Line Set (Qty 3)

Specifications:

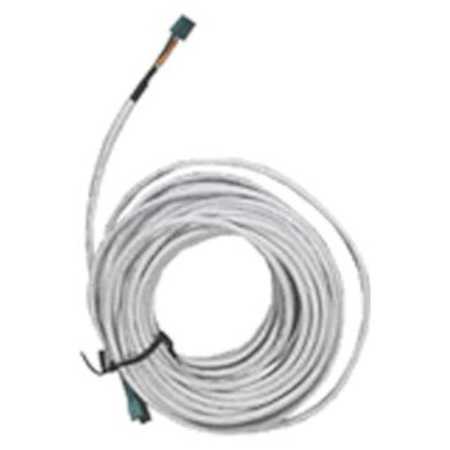

PZCWRC1 (x3)

Solid Brass

  • Length: 396"
  • Product Weight: 0.25 lbs.

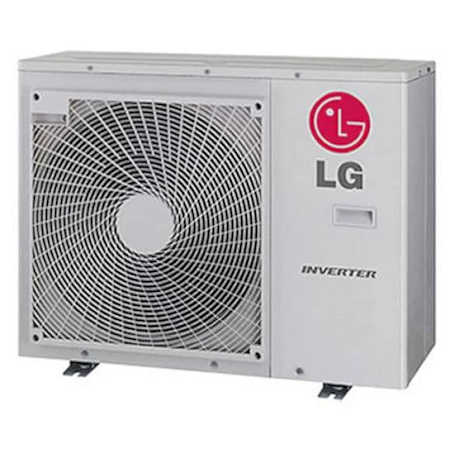

LMU303HV

Solid Brass

  • Cooling BTU Capacity: 30000
  • Heating BTU Capacity: 32000
  • Zone Capacity: 4
  • Sound Level: 54 dB
  • Low Ambient Heating: Yes
  • Minimum Outdoor Temperature for Heating: -4 F
  • Minimum Outdoor Temperature for Cooling: 14 F
  • Depth: 15-1/2"
  • Height: 32-7/8"
  • Width: 37-3/8"
  • Recommended Breaker Size: 25 A
  • Voltage: 208, 230V

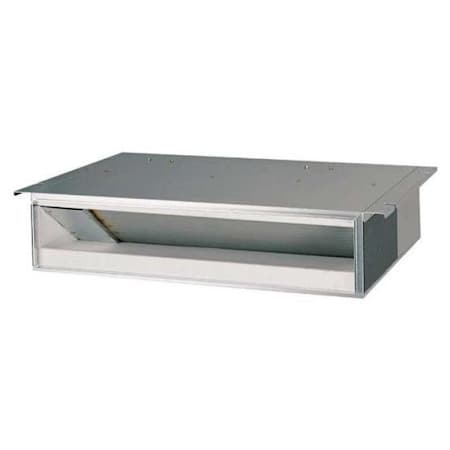

LDN127HV4 (x3)

Solid Brass

  • Zone Cooling BTU: 12000
  • Zone Heating BTU: 13800
  • Cooling Area: 550 Sq. Ft.
  • Sound Level: 27 to 31 dB
  • Liquid Line Connection Size: 1/4" Inch
  • Gas Line Connection Size: 3/8" Inch
  • Depth: 27-9/16"
  • Height: 7-1/2"
  • Width: 38-3/8"
  • Voltage: 208, 230V

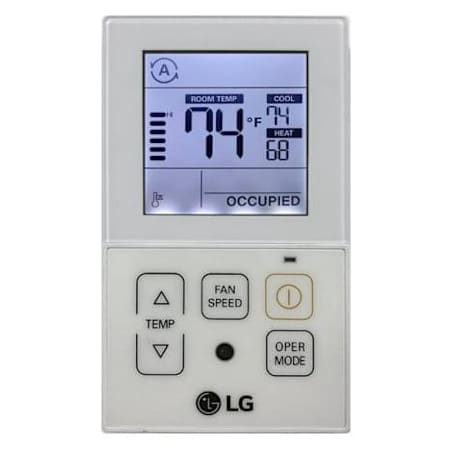

PREMTC00U (x3)

Solid Brass

  • Width: 5/8"
  • Length: 4-3/4"
  • Depth: 2-3/4"
  • Product Weight: 0.18 lbs.

Dimensions and Measurements

CFM
353, 247
Cooling Area
550 sq. ft.
Depth (Condenser)
15.5 in.
Depth (Indoor Unit)
27.563 in.
Gas Connection
3/8"
Height (Condenser)
32.844 in.
Height (Indoor Unit)
7.469 in.
Liquid Line Connection Size
1/4"
Maximum Line Set Length
246.1 ft.
Product Weight
481.62 lbs.
Width (Condenser)
37.406 in.
Width (Indoor Unit)
38.344 in.

Dimensions and Measurements

CFM
353, 247
Cooling Area
550 sq. ft.
Depth (Condenser)
15.5 in.
Depth (Indoor Unit)
27.563 in.
Gas Connection
3/8"
Height (Condenser)
32.844 in.
Height (Indoor Unit)
7.469 in.
Liquid Line Connection Size
1/4"
Maximum Line Set Length
246.1 ft.
Product Weight
481.62 lbs.
Width (Condenser)
37.406 in.
Width (Indoor Unit)
38.344 in.

Included Components

Branch Box Required
No
Heater Included
Yes
Includes Remote
Yes
Includes Thermostat
Yes
Line Set Included
No

Included Components

Branch Box Required
No
Heater Included
Yes
Includes Remote
Yes
Includes Thermostat
Yes
Line Set Included
No

Characteristics and Features

Auto Restart
Yes
Control Type
Remote
Indoor Unit Type
Concealed Duct
Installation Type
Mini Split
Low Ambient Heating
Yes
Refrigerant
R-410A
Wireless Communication
WiFi

Characteristics and Features

Auto Restart
Yes
Control Type
Remote
Indoor Unit Type
Concealed Duct
Installation Type
Mini Split
Low Ambient Heating
Yes
Refrigerant
R-410A
Wireless Communication
WiFi

Electrical and Operational Information

Amperage
25
Auto Shut Off
Yes
Breaker Needs
25 Amps
Cooling BTU Capacity
30000
Cooling Power Input
2608
dBA (High)
54
dBA (Low)
27
EER
11
Electrical Phases
1
Fan Speeds
3
Frequency
60 Hertz
Heating BTU Capacity
32000
Heating Power Input
2811
Minimum Outdoor Temperature for Cooling
14 °F
Minimum Outdoor Temperature for Heating
-4 °F
Number of Zones
3
Power Source
Hardwired
Voltage
208
Zone Capacity
4
Zone Cooling BTU
12000
Zone Heating BTU
13800

Electrical and Operational Information

Amperage
25
Auto Shut Off
Yes
Breaker Needs
25 Amps
Cooling BTU Capacity
30000
Cooling Power Input
2608
dBA (High)
54
dBA (Low)
27
EER
11
Electrical Phases
1
Fan Speeds
3
Frequency
60 Hertz
Heating BTU Capacity
32000
Heating Power Input
2811
Minimum Outdoor Temperature for Cooling
14 °F
Minimum Outdoor Temperature for Heating
-4 °F
Number of Zones
3
Power Source
Hardwired
Voltage
208
Zone Capacity
4
Zone Cooling BTU
12000
Zone Heating BTU
13800

Warranty and Product Information

AHRI Reference Number
208131889
Approved for Commercial Use
Yes
Certifications
ETL, ISO
Collection
Multi F
Country Of Origin
South Korea
DOE Regional Compliance
Nationwide
Energy Star
Yes
HSPF
9.7
HSPF2
8.8
Manufacturer Warranty
5 Year Limited
SEER Cooling
18.2
SEER2
18.5

Warranty and Product Information

AHRI Reference Number
208131889
Approved for Commercial Use
Yes
Certifications
ETL, ISO
Collection
Multi F
Country Of Origin
South Korea
DOE Regional Compliance
Nationwide
Energy Star
Yes
HSPF
9.7
HSPF2
8.8
Manufacturer Warranty
5 Year Limited
SEER Cooling
18.2
SEER2
18.5
