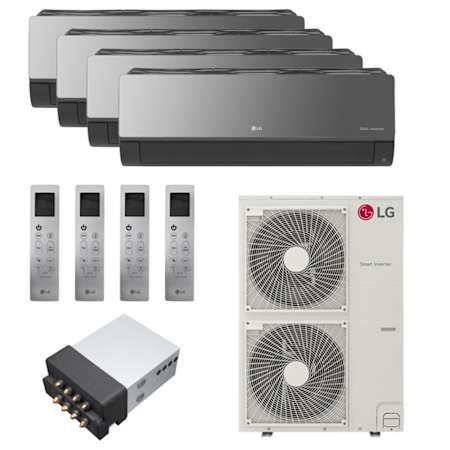

LG 50.5K BTU Cooling 20.6 SEER2 Four Zone Wall Mount Mini Split Package with Smoked Charcoal 9k + 18k + 18k + 18k Indoor Units

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

For questions or assistance, please call (855) 484-3292 to speak to one of our experts.

LG's devotion to providing efficient ductless solutions can be seen across the Multi F line. This wall mounted ductless heat pump system pairs a powerful KUMXB541A outdoor condenser with four wall mounted indoor units from LG's Art Cool Mirror line. An easy installation process and low sound levels mean that this system provides temperature control that doesn't disrupt your home. The well-rounded indoor units feature several convenient operation modes and each includes a wireless remote controller, making it easy for you to enjoy zoned comfort.

Product Information:

• Enhanced Connectivity: LG's new R-32 mini split units require a 5-conductor cable (Not Included) instead of the standard 4-conductor, improving communication reliability and enabling a new leak detection feature.


• Inverter Technology: LG's heat pump systems are designed with efficient inverter technology. An electronic expansion valve and a variable speed compressor carefully regulate the refrigerant flow, reducing energy consumption and allowing for consistent, accurate temperatures.


• Built-In Wi-Fi: With built-in Wi-Fi, you have the ability to control your LG air conditioner with smart enabled devices. Simply download the SmartThinQ® app on your smart device to get started.


• Gold Fin Protection: To ensure the reliability and longevity of the KUMXB541A's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.


• Quiet Design: Thanks to a brushless direct current fan motor, both the outdoor and indoor units in this system produce less mechanical and electrical noise, allowing them to provide comfort that doesn't disrupt your home.


• Air Flow Options: This unit gives you two options for automating air flow. In Swing Mode, the unit will rotate through all four air flow directions to ensure consistent comfort in every corner of your room.


• Self-Cleaning Coil: These wall mounted units feature a self-cleaning heat exchanger coil that automatically removes dirt and moisture. This helps to prevent unpleasant odors and to combat the formation of mold.


• Jet Temperature Control: Quickly get your zone comfortable with the Jet Heat and Jet Cool modes. With the press of a button, your system will temporarily adjust the set point and fan speed to provide rapid heating or cooling.


• Automated Operation: Auto operation mode continually compares your zone's current and desired temperatures and uses that data to intelligently adjust the unit's fan speed and refrigerant flow to provide optimal comfort.


• Sleep Mode: With the Sleep Mode and Timer functions, you can set this indoor unit to save energy at night. Sleep Mode will incrementally adjust temperature for an hour before the Timer function automatically deactivates the unit.


• Dehumidify: LG's indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.


• Improved Air Quality: The LG wall mounted units use a dual filtration system to keep your air clean. A washable anti-fungal filter protects against dust and bacteria, while a 3M Micro Protection Filter captures microscopic irritants for pristine air quality.


• Hot-Start: When the Hot-Start function is enabled, the indoor unit's fan will not engage until the outdoor condenser has had the opportunity to warm the indoor coil. This prevents the unit from blowing cold air during heating operations.


• Recommended line set sizes for indoor unit connectivity:
  • KNUAK091A: 1/4" x 3/8" Line Set
  • KNUAK181A: 1/4" x 1/2" Line Set (Qty 3)


• A branch box with a 3/8" x 3/4" line set connection is also required. Additional branch boxes and line sets may be required based on your configuration.


• All LG branch boxes systems require a min of 16.4 feet of line set between the condenser and the branch box, from the branch box to the distribution box and from the distribution box to the indoor unit.

Product Assurance:

• Certifications: AHRI
• Performance and Efficiency:
  • SEER2: 20.6
  • HSPF2: 9.5
• Manufacturer Warranty: 5 Year Parts

Required Components:

• Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
• Drain Line: The drain line removes the condensate from your system. It connects your system to the drain location of your choosing
• Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser
• Disconnect Box and Electrical Whip Kit: The disconnect box and whip kit gives an easy way to connect your outdoor condenser to your fuse box
• Base Pan Heater (Optional): The base pan heater stops ice from building up on the outdoor unit, preventing performance degradation and potential damage
• Outdoor Condenser Plastic Pad (Optional): An outdoor condenser pad provides an even surface on which to place your outdoor condenser
• Wall Bracket (Optional): A wall bracket provides a way to mount your outdoor condenser off the ground to keep it clear it of debris

Specifications:

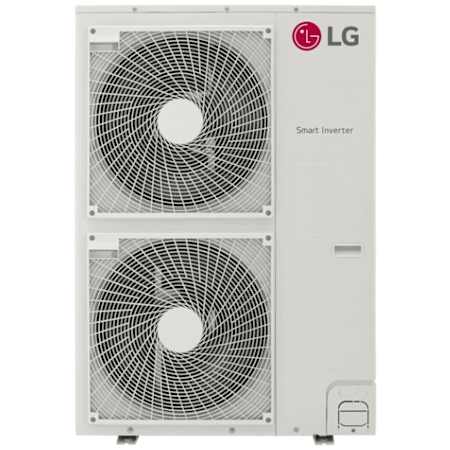

KUMXB541A

• Cooling BTU Capacity: 50,500
• Heating BTU Capacity: 58,000
• Zone Capacity: 8
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -4 F
• Minimum Outdoor Temperature for Cooling: 14 F
• Liquid Line Connection Size: 3/8"
• Gas Line Connection Size: 3/4"
• Depth: 13"
• Height: 54-3/8"
• Width: 37-3/8"
• Recommended Breaker Size: 40 A
• Amperage: 33.3 A
• Voltage: 208, 230V

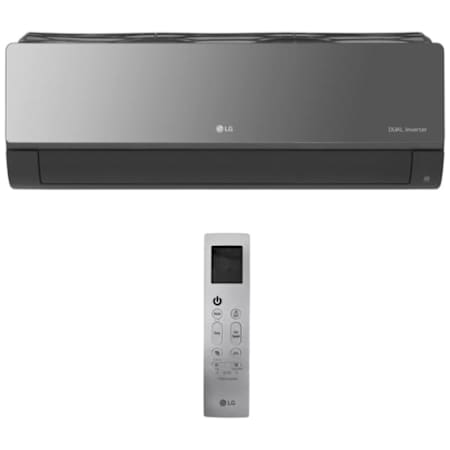

KNUAK091A

• Zone Cooling BTU: 9,000
• Zone Heating BTU: 10,900
• Sound Level: 27 to 36 dB
• Liquid Line Connection Size: 1/4" Inch
• Gas Line Connection Size: 3/8" Inch
• Depth: 7-9/16"
• Height: 12-1/8"
• Width: 32-15/16"
• Amperage: 0.4 A
• Voltage: 208, 230V

KNUAK181A (x3)

• Zone Cooling BTU: 18,000
• Zone Heating BTU: 21,600
• Sound Level: 34 to 44 dB
• Liquid Line Connection Size: 1/4" Inch
• Gas Line Connection Size: 1/2" Inch
• Depth: 8-3/8"
• Height: 13-5/8"
• Width: 39-1/4"
• Amperage: 0.4 A
• Voltage: 208, 230V

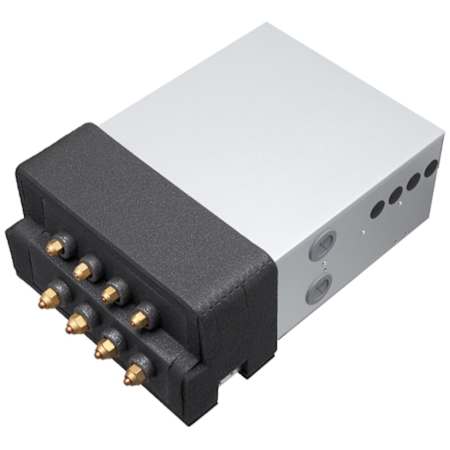

PMBD3640ZR

• Product Category: Mini Split Air Conditioner Accessory
• Type: Branch Boxes
• Width: 15-3/8"
• Length: 25-3/8
• Product Weight: 19.4 lbs.
• Voltage: 208, 230V
