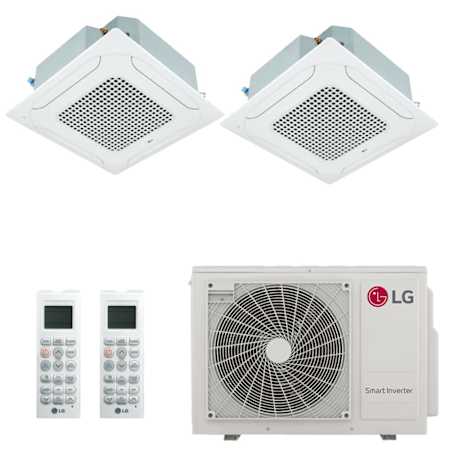

LG 24K BTU Cooling 22.5 SEER2 Two Zone Ceiling Cassette Mini Split Package with 7K + 18K Indoor Units

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

For questions or assistance, please call (855) 484-3292 to speak to one of our experts.

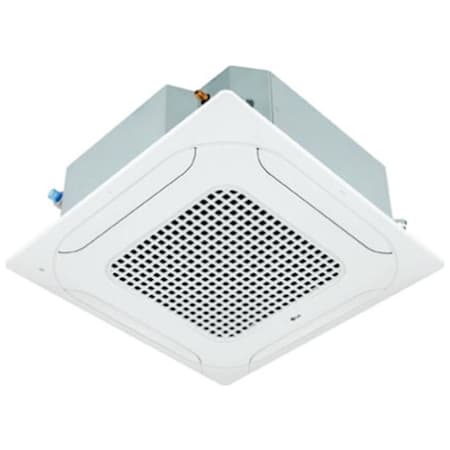

LG's devotion to providing efficient ductless solutions can be seen across the Multi F line. This ceiling cassette heat pump system pairs a powerful KUMXB241A outdoor condenser with two ceiling cassette indoor units. LG's Multi F ceiling cassette indoor units feature four air outlets which allow them to provide consistent air flow to the furthest reaches of large rooms. In addition to providing excellent coverage, the ceiling cassette indoor units also feature an exceptionally low profile. When installed, a grille less than 1" thick is the only visible clue that your room is receiving efficient heating and cooling.

Product Information:

• Enhanced Connectivity: LG's new R-32 mini split units use a 5-conductor cable (Not Included) instead of the standard 4-conductor, improving communication reliability and enabling a new leak detection feature.


• Inverter Technology: LG's heat pump systems are designed with efficient inverter technology. An electronic expansion valve and a variable speed compressor carefully regulate the refrigerant flow, reducing energy consumption and allowing for consistent, accurate temperatures.


• Air Flow Options: This unit offers two automated air flow options: Swing Mode and Swirl Wind mode. Any of these modes can be activated to provide optimal circulation specific to your home.


• Gold Fin Protection: To ensure the reliability and longevity of the KUMXB241A's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.


• Quiet Design: Thanks to a brushless direct current fan motor, both the outdoor and indoor units in this system produce less mechanical and electrical noise, allowing them to provide comfort that doesn't disrupt your home.


• Jet Cool: This LG unit features a Jet Cool operation mode for rapid cooling. In this mode, the indoor unit will temporarily adjust the set point and fan speed for 30 minutes to quickly cool your zone.


• Automated Operation: Auto operation mode continually compares your zone's current and desired temperatures and uses that data to intelligently adjust the unit's fan speed and refrigerant flow to provide optimal comfort.


• Sleep Mode: With the Sleep Mode and Timer functions, you can set this indoor unit to save energy at night. Sleep Mode will incrementally adjust temperature for an hour before the Timer function automatically deactivates the unit.


• Condensate Protection: Condensate overflow can damage your indoor unit and your home. An internal condensate pump with 27.5" of lift protects the indoor unit through reliable, effective condensate removal.


• Dehumidify: LG's indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.


• Improved Air Quality: These mini split indoor units include an anti-fungal filter to keep your air clean. This filter captures contaminants like dust and bacteria, and it is washable to ensure long term air quality.


• Hot-Start: When the Hot-Start function is enabled, the indoor unit's fan will not engage until the outdoor condenser has had the opportunity to warm the indoor coil. This prevents the unit from blowing cold air during heating operations.


• Recommended line set sizes for indoor unit connectivity:
  • KNMDB071A: 1/4" x 3/8" Line Set
  • KNUDB181A: 1/4" x 1/2" Line Set



Product Assurance:

• Certifications: AHRI
• Performance and Efficiency:
  • SEER2: 22.5
  • HSPF2: 9.8
• Manufacturer Warranty: 5 Year Parts

Required Components:

• Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
• Drain Line: The drain line removes the condensate from your system. It connects your system to the drain location of your choosing
• Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser
• Disconnect Box and Electrical Whip Kit: The disconnect box and whip kit gives an easy way to connect your outdoor condenser to your fuse box
• Base Pan Heater (Optional): The base pan heater stops ice from building up on the outdoor unit, preventing performance degradation and potential damage
• Outdoor Condenser Plastic Pad (Optional): An outdoor condenser pad provides an even surface on which to place your outdoor condenser
• Wall Bracket (Optional): A wall bracket provides a way to mount your outdoor condenser off the ground to keep it clear it of debris

Specifications:

PT-QAGW0 (x2)

• Product Category: Mini Split Air Conditioner Accessory
• Type: Grilles
• Width: 24-3/8"
• Length: 24-3/8
• Depth: 1-3/8"
• Product Weight: 6.3 lbs.

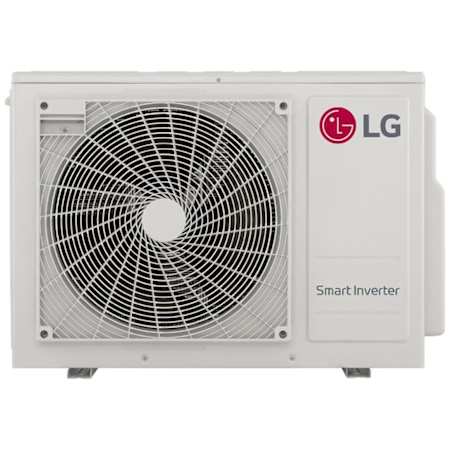

KUMXB241A

• Cooling BTU Capacity: 24,000
• Heating BTU Capacity: 24,600
• Zone Capacity: 3
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -4 F
• Minimum Outdoor Temperature for Cooling: 14 F
• Liquid Line Connection Size: 1/4"
• Gas Line Connection Size: 3/8"
• Depth: 13"
• Height: 25-5/8"
• Width: 34-1/4"
• Recommended Breaker Size: 20 A
• Amperage: 16.5 A
• Voltage: 208, 230V

KNMDB071A-NG

• Zone Cooling BTU: 7,000
• Zone Heating BTU: 8,100
• Sound Level: 24 to 31 dB
• Liquid Line Connection Size: 1/4" Inch
• Gas Line Connection Size: 3/8" Inch
• Depth: 22-7/16"
• Height: 8-1/8"
• Width: 22-7/16"
• Amperage: 0.25 A
• Voltage: 208, 230V

KNUDB181A-NG

• Zone Cooling BTU: 18,000
• Zone Heating BTU: 20,800
• Sound Level: 36 to 41 dB
• Liquid Line Connection Size: 1/4" Inch
• Gas Line Connection Size: 1/2" Inch
• Depth: 22-7/16"
• Height: 10-1/16"
• Width: 22-7/16"
• Amperage: 0.25 A
• Voltage: 208, 230V
