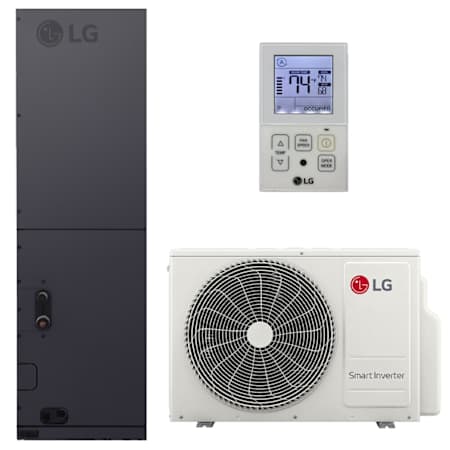

LG 11.1K BTU Cooling 16.2 SEER2 One Zone Ducted Air Handler Mini Split Package with Inverter Technology and Gold Fin Protection

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

For questions or assistance, please call (855) 484-3292 to speak to one of our experts.

LG's devotion to providing efficient ductless solutions can be seen across their entire catalog. The KSSLB121A is a multi-position air handling system that can be installed with nearly any pre-existing duct work. LG's air handlers are designed to provide powerful heating and cooling for the larger rooms in your home. Capable of managing high air speeds and volumes effortlessly, the KSSLB121A is an impressive solution to your home's heating and cooling needs.

Product Information:

• Enhanced Connectivity: LG's new R-32 mini split units require a 5-conductor cable (Not Included) instead of the standard 4-conductor, improving communication reliability and enabling a new leak detection feature.


• Inverter Technology: LG's heat pump systems are designed with efficient inverter technology. An electronic expansion valve and a variable speed compressor carefully regulate the refrigerant flow, reducing energy consumption and allowing for consistent, accurate temperatures.


• Quiet Design: The KNSLB121A indoor unit features a cross flow fan that restricts the pressure of air flow and lowers sound levels. Both the outdoor and indoor units enjoy reduced electrical and mechanical sound thanks to their brushless direct current fan motors.


• Dehumidify: LG's indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.


• Multi-Position: The KNSLB121A can be installed in either a vertical or a horizontal orientation, making it a versatile solution for all manners of duct systems.


• Sleep Mode: With the Sleep Mode and Timer functions, you can set the indoor unit to save energy at night. Sleep Mode will incrementally adjust temperature for an hour before the Timer function automatically deactivates the unit.


• Gold Fin Protection: To ensure the reliability and longevity of the KUSXB121A's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.

Product Assurance:

• Certifications: AHRI
• Performance and Efficiency:
  • SEER2: 16.2
  • HSPF2: 9.5
• Manufacturer Warranty: 5 Year Parts

Required Components:

• Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
• Drain Line: The drain line removes the condensate from your system. It connects your system to the drain location of your choosing
• Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser
• Disconnect Box and Electrical Whip Kit: The disconnect box and whip kit gives an easy way to connect your outdoor condenser to your fuse box
• Base Pan Heater (Optional): The base pan heater stops ice from building up on the outdoor unit, preventing performance degradation and potential damage
• Outdoor Condenser Plastic Pad (Optional): An outdoor condenser pad provides an even surface on which to place your outdoor condenser
• Wall Bracket (Optional): A wall bracket provides a way to mount your outdoor condenser off the ground to keep it clear it of debris

Specifications:

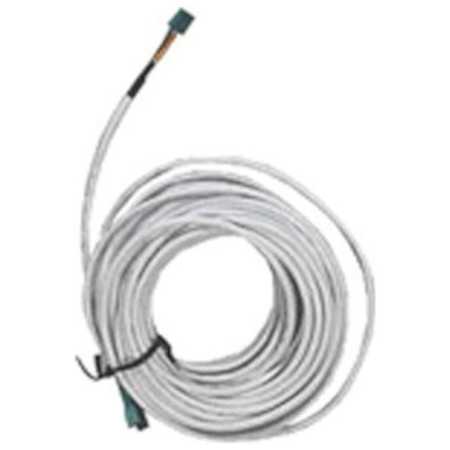

PZCWRC1

• Product Category: Mini Split Air Conditioner Accessory
• Type: Controls
• Length: 32
• Product Weight: 0.25 lbs.

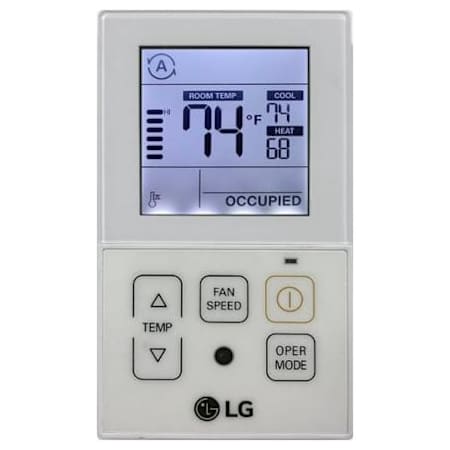

PREMTC00U

• Product Category: Mini Split Air Conditioner Accessory
• Type: Controls
• Width: 2-3/4"
• Length: 4-3/4
• Depth: 5/8"
• Product Weight: 0.18 lbs.

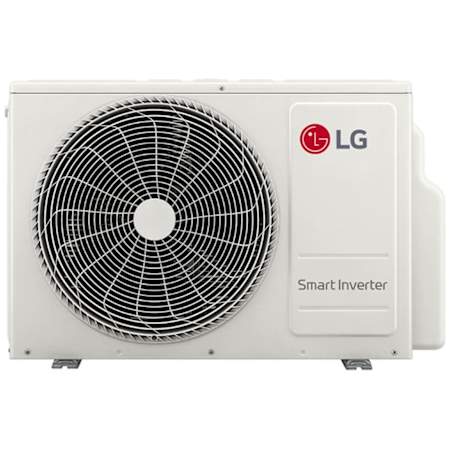

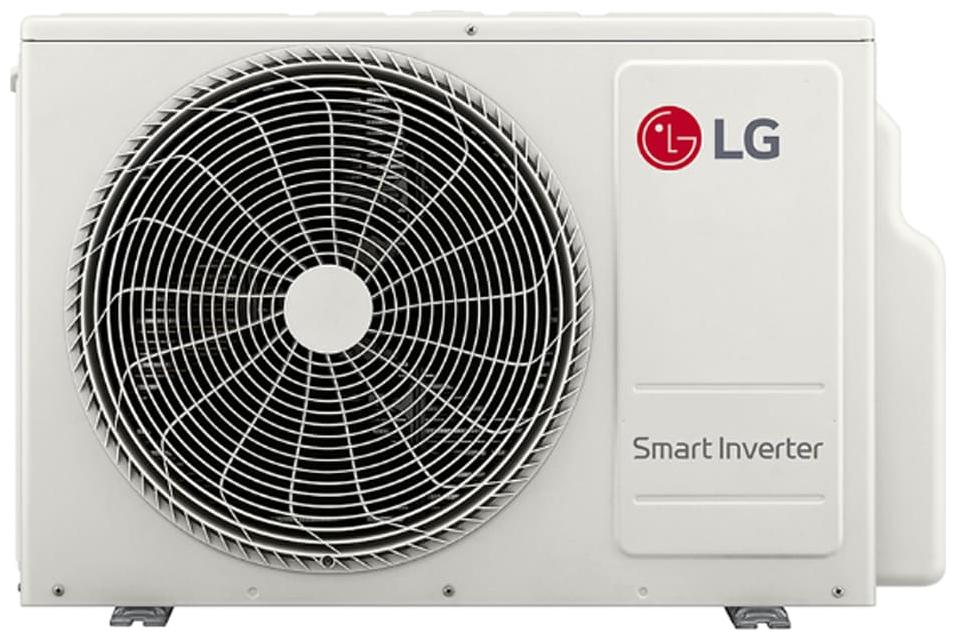

KUSXB121A

• Cooling BTU Capacity: 11,100
• Heating BTU Capacity: 14,000
• Zone Capacity: 1
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -4 F
• Minimum Outdoor Temperature for Cooling: 5 F
• Liquid Line Connection Size: 1/4"
• Gas Line Connection Size: 3/8"
• Depth: 11-3/8"
• Height: 21-1/2"
• Width: 30-5/16"
• Recommended Breaker Size: 15 A
• Amperage: 13.4 A
• Voltage: 208, 230V

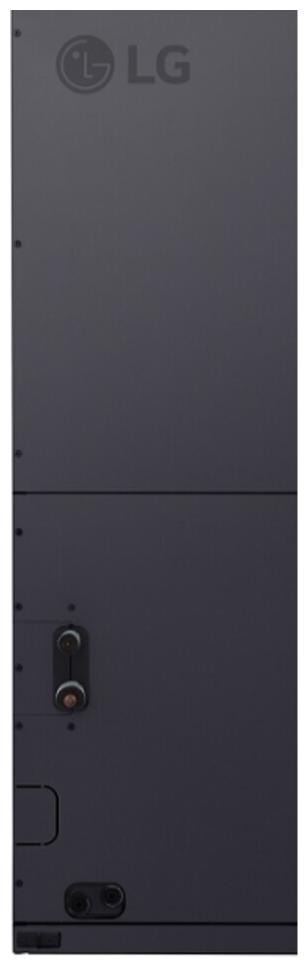

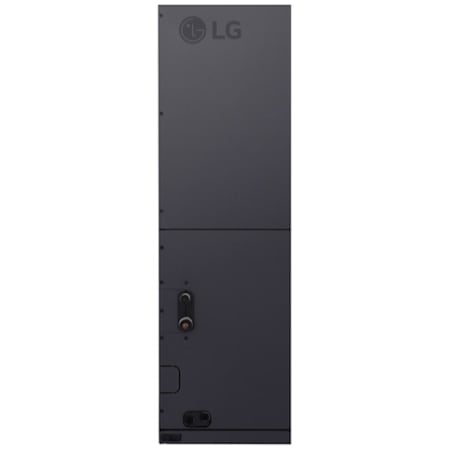

KNSLB121A

• Zone Cooling BTU: 12,000
• Sound Level: 28 to 34 dB
• Liquid Line Connection Size: 1/4" Inch
• Gas Line Connection Size: 3/8" Inch
• Depth: 21-3/8"
• Height: 49-3/8"
• Width: 18"
• Voltage: 208, 230V
