LG 23K BTU Cooling 21 SEER2 One Zone Ceiling Cassette Mini Split Package with Inverter Technology and Enhanced Connectivity

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

For questions or assistance, please call (855) 484-3292 to speak to one of our experts.

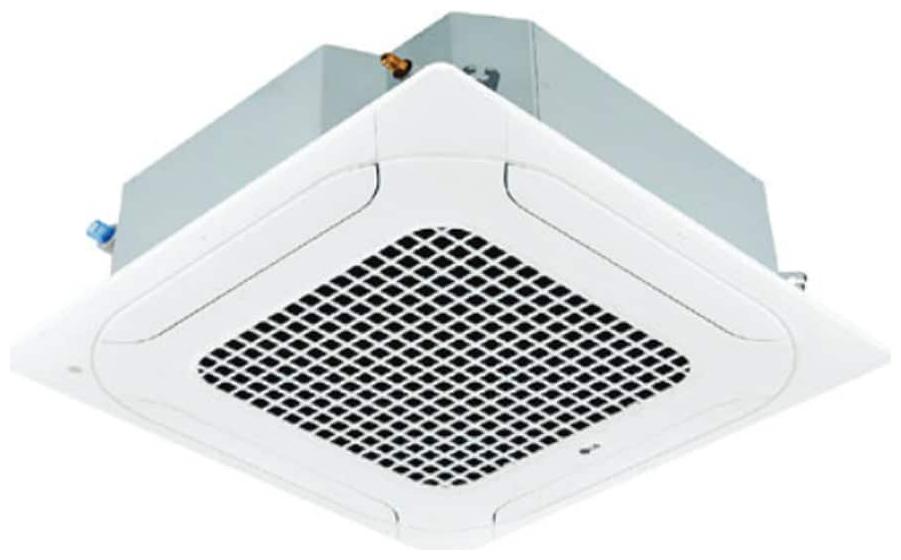

LG's devotion to providing efficient ductless solutions can be seen across their entire catalog. LG's Four-Way Ceiling Cassette systems, such as this KSSCB241A, have several advantages over wall mounted systems. By recessing the KSSCB241A indoor unit, a 1.5" thick grille is the only part of the equipment that stays visible. Unobtrusive comfort isn't the only advantage of a ceiling cassette; with four air flow directions, the KSSCB241A provides excellent coverage for large zones. If you're looking for a low-profile alternative to wall mounted ductless heat pump systems, LG's Four-Way Ceiling Cassettes are a great choice.

Product Information:

• Enhanced Connectivity: LG's new R-32 mini split units require a 5-conductor cable (Not Included) instead of the standard 4-conductor, improving communication reliability and enabling a new leak detection feature.


• Inverter Technology: LG's heat pump systems are designed with efficient inverter technology. An electronic expansion valve and a variable speed compressor carefully regulate the refrigerant flow, reducing energy consumption and allowing for consistent, accurate temperatures.


• Quiet Design: The KNSCB241A indoor unit features a cross flow fan that restricts the pressure of air flow and lowers sound levels. Both the outdoor and indoor units enjoy reduced electrical and mechanical sound thanks to their brushless direct current fan motors.


• Gold Fin Protection: To ensure the reliability and longevity of the KUSXB241A's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.


• Jet Cool: This system features a Jet Cool operation mode for rapid cooling. In this mode, the indoor unit will temporarily adjust the set point and fan speed for 30 minutes to quickly cool your zone.


• Air Flow Options: The KNSCB241A offers two automated air flow options: Swing Mode and Swirl Wind mode. Any of these modes can be activated to provide optimal circulation specific to your home.


• Sleep Mode: With the Sleep Mode and Timer functions, you can set the indoor unit to save energy at night. Sleep Mode will incrementally adjust temperature for an hour before the Timer function automatically deactivates the unit.


• Condensate Protection: Condensate overflow can damage your indoor unit and your home. An internal condensate pump with 31.5" of lift protects the KNSCB241A through reliable, effective condensate removal.


• Dehumidify: LG's indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.


• Improved Air Quality: The KNSCB241A features an anti-fungal filter to keep your air clean. This filter captures contaminants like dust and bacteria, and it is washable to ensure long term air quality.

Product Assurance:

• Certifications: AHRI
• Performance and Efficiency:
  • SEER2: 21
  • HSPF2: 10.2
• Manufacturer Warranty: 5 Year Parts

Required Components:

• Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
• Drain Line: The drain line removes the condensate from your system. It connects your system to the drain location of your choosing
• Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser
• Disconnect Box and Electrical Whip Kit: The disconnect box and whip kit gives an easy way to connect your outdoor condenser to your fuse box
• Base Pan Heater (Optional): The base pan heater stops ice from building up on the outdoor unit, preventing performance degradation and potential damage
• Outdoor Condenser Plastic Pad (Optional): An outdoor condenser pad provides an even surface on which to place your outdoor condenser
• Wall Bracket (Optional): A wall bracket provides a way to mount your outdoor condenser off the ground to keep it clear it of debris

Specifications:

PT-AAGW0

• Width: 39-5/8"
• Length: 4"
• Depth: 39-5/8"

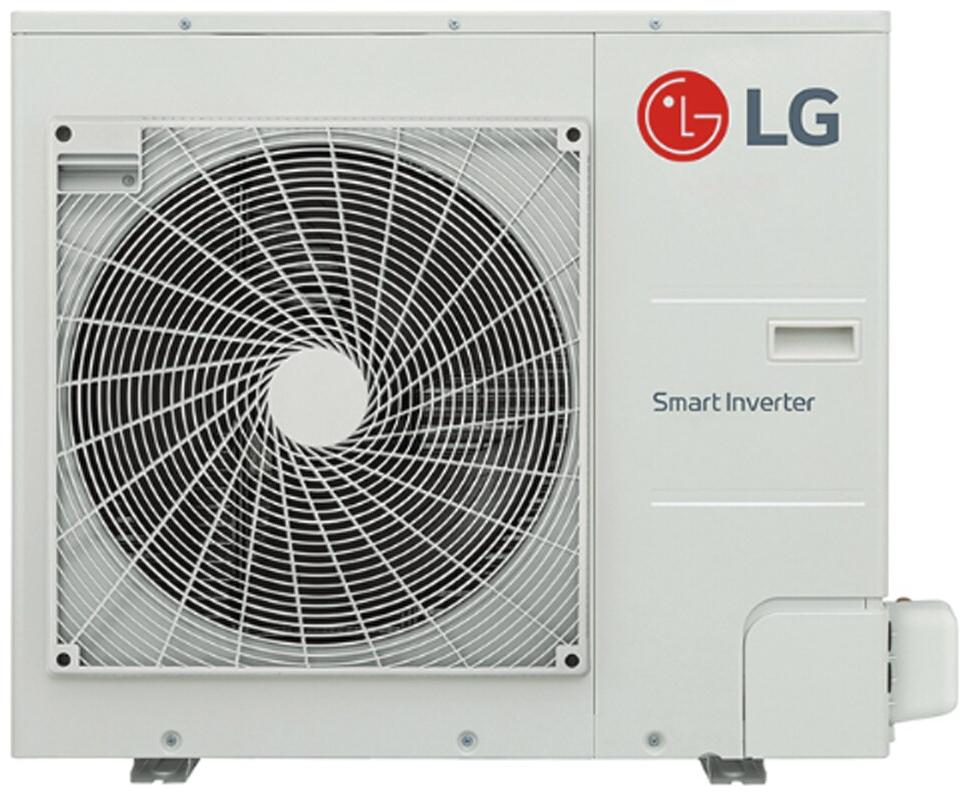

KUSXB241A

• Cooling BTU Capacity: 23,000
• Heating BTU Capacity: 27,000
• Zone Capacity: 1
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -4 F
• Minimum Outdoor Temperature for Cooling: 5 F
• Liquid Line Connection Size: 3/8"
• Gas Line Connection Size: 5/8"
• Depth: 13"
• Height: 32-7/8"
• Width: 37-3/8"
• Recommended Breaker Size: 25 A
• Amperage: 16 A
• Voltage: 208, 230V

KNSCB241A-NG

• Zone Cooling BTU: 24,000
• Sound Level: 35 to 40 dB
• Liquid Line Connection Size: 3/8" Inch
• Gas Line Connection Size: 5/8" Inch
• Depth: 33-1/16"
• Height: 8"
• Width: 33-1/16"
• Voltage: 208, 230V
