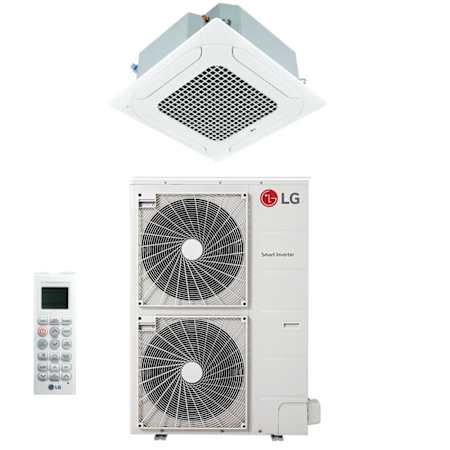

LG 30K BTU Cooling 25 SEER2 One Zone Ceiling Cassette Mini Split Package with Inverter Technology and Enhanced Connectivity
Model: KSSCA301A|Item: bci5052107
This package includes the following items
Details

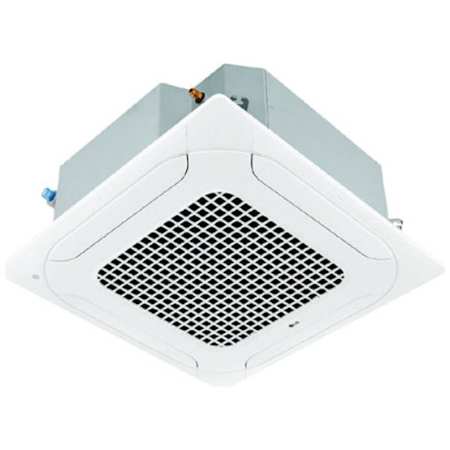

LG's devotion to providing efficient ductless solutions can be seen across their entire catalog. LG's Four-Way Ceiling Cassette systems, such as this KSSCA301A, have several advantages over wall mounted systems. Unobtrusive comfort isn't the only advantage of a ceiling cassette; with four air flow directions, the KSSCA301A provides excellent coverage for large zones. If you're looking for a low-profile alternative to wall mounted ductless heat pump systems, LG's Four-Way Ceiling Cassettes are a great choice. The KSSCA301A also features LGRED° Heat technology, which boasts superior heating performance in extreme cold weather climates.
Product Information:
- Enhanced Connectivity: LG's new R-32 mini split units require a 5-conductor cable (Not Included) instead of the standard 4-conductor, improving communication reliability and enabling a new leak detection feature.
- Inverter Technology: LG's heat pump systems are designed with efficient inverter technology. An electronic expansion valve and a variable speed compressor carefully regulate the refrigerant flow, reducing energy consumption and allowing for consistent, accurate temperatures.
- Quiet Design: The KNSCB301A indoor unit features a cross flow fan that restricts the pressure of air flow and lowers sound levels. Both the outdoor and indoor units enjoy reduced electrical and mechanical sound thanks to their brushless direct current fan motors.
- Integrated Base Pan Heater: The KUSXA301A Outdoor Condenser features a factory-installed base pan heater in the drain pan. This prevents condensate from freezing and damaging the unit in frigid climates.
- Jet Cool: This system features a Jet Cool operation mode for rapid cooling. In this mode, the indoor unit will temporarily adjust the set point and fan speed for 30 minutes to quickly cool your zone.
- Air Flow Options: The KNSCB301A offers two automated air flow options: Swing Mode and Swirl Wind mode. Any of these modes can be activated to provide optimal circulation specific to your home.
- Gold Fin Protection: To ensure the reliability and longevity of the KUSXA301A's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.
- Sleep Mode: With the Sleep Mode and Timer functions, you can set the indoor unit to save energy at night. Sleep Mode will incrementally adjust temperature for an hour before the Timer function automatically deactivates the unit.
- Condensate Protection: Condensate overflow can damage your indoor unit and your home. An internal condensate pump with 27.5" of lift protects the KNSCB301A through reliable, effective condensate removal.
- Dehumidify: LG's indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
- Improved Air Quality: The KNSCB301A features an anti-fungal filter to keep your air clean. This filter captures contaminants like dust and bacteria, and it is washable to ensure long term air quality.
Product Assurance:
- Certifications: AHRI
- Performance and Efficiency:
- SEER2: 25
- HSPF2: 10.4
- Manufacturer Warranty: 5 Year Parts
Required Components:
- Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
- Drain Line: The drain line removes the condensate from your system. It connects your system to the drain location of your choosing
- Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser
- Disconnect Box and Electrical Whip Kit: The disconnect box and whip kit gives an easy way to connect your outdoor condenser to your fuse box
- Base Pan Heater (Optional): The base pan heater stops ice from building up on the outdoor unit, preventing performance degradation and potential damage
- Outdoor Condenser Plastic Pad (Optional): An outdoor condenser pad provides an even surface on which to place your outdoor condenser
- Wall Bracket (Optional): A wall bracket provides a way to mount your outdoor condenser off the ground to keep it clear it of debris
Specifications:

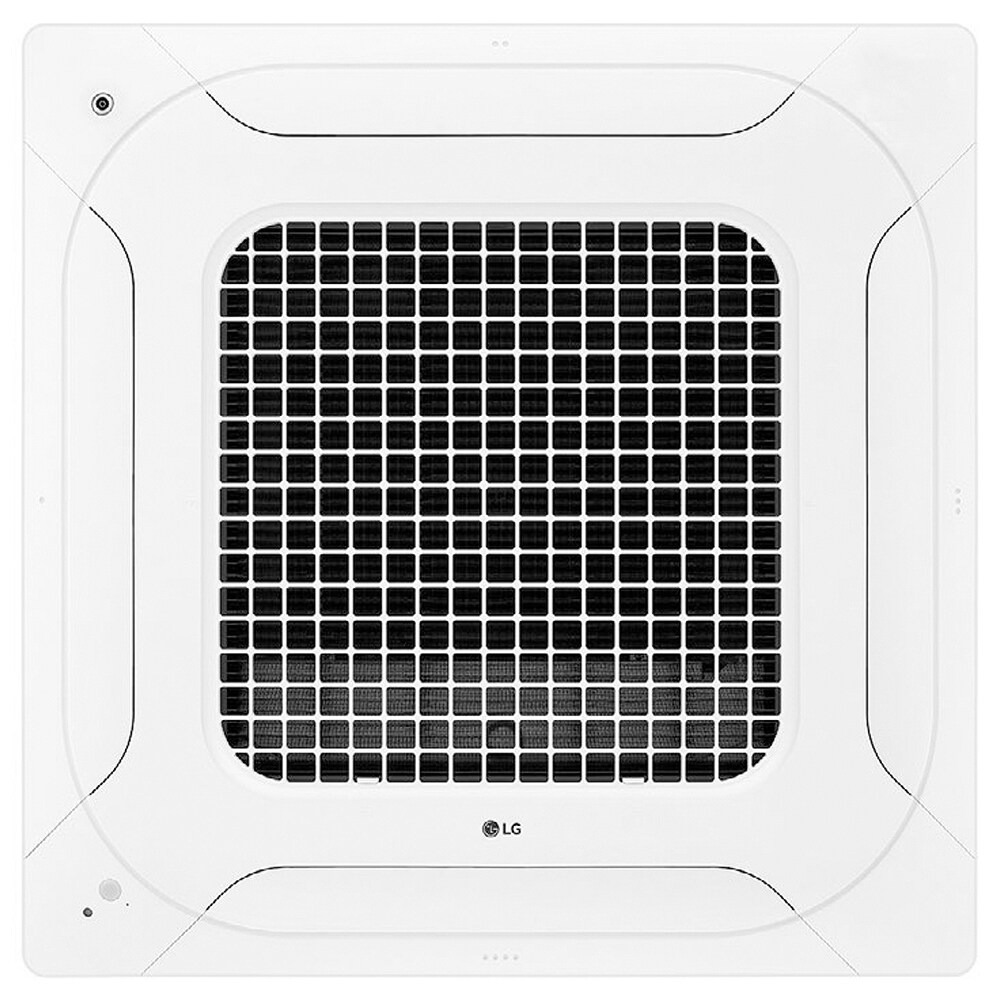

PT-AAGW0

- Width: 39-5/8"
- Length: 4"
- Depth: 39-5/8"

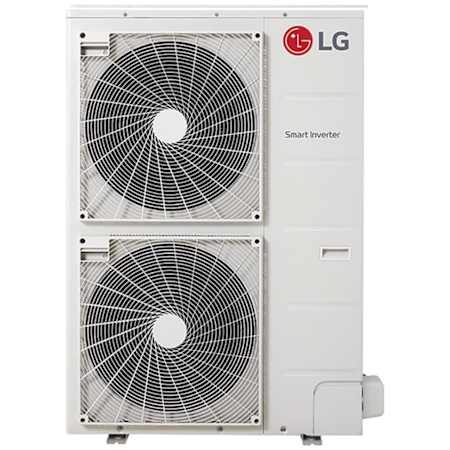

KUSXA301A

- Cooling BTU Capacity: 30,000
- Heating BTU Capacity: 34,000
- Zone Capacity: 1
- Low Ambient Heating: Yes
- Minimum Outdoor Temperature for Heating: -13 F
- Minimum Outdoor Temperature for Cooling: 5 F
- Liquid Line Connection Size: 3/8"
- Gas Line Connection Size: 5/8"
- Depth: 13"
- Height: 54-3/8"
- Width: 37-3/8"
- Recommended Breaker Size: 35 A
- Amperage: 32 A
- Voltage: 208, 230V

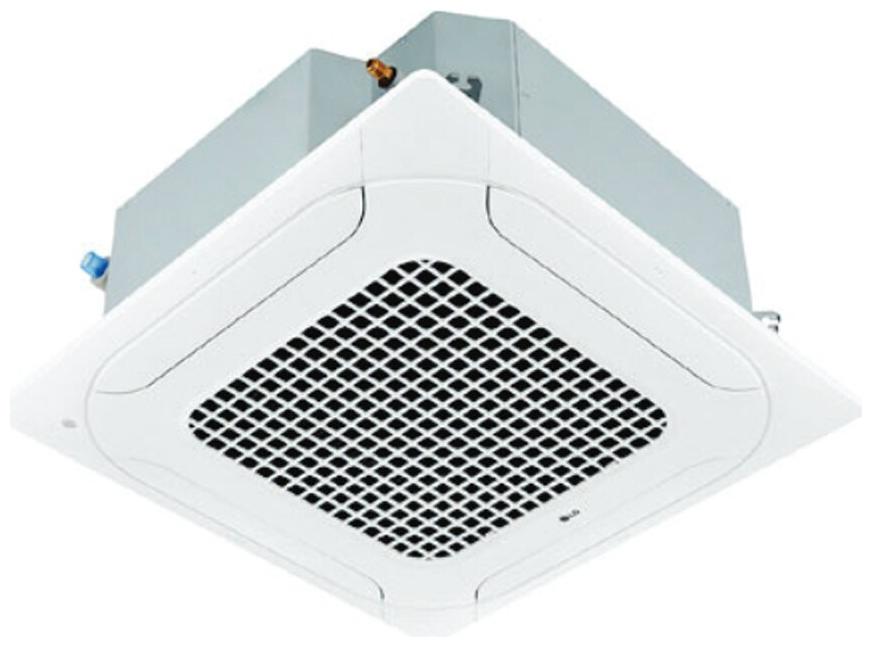

KNSCB301A-NG

- Zone Cooling BTU: 30,000
- Sound Level: 40 to 42 dB
- Liquid Line Connection Size: 3/8" Inch
- Gas Line Connection Size: 5/8" Inch
- Depth: 33-1/16"
- Height: 11-5/16"
- Width: 33-1/16"
- Voltage: 208, 230V
Dimensions and Measurements
CFM | 670 |
Cooling Area | 1500 sq. ft. |
Depth (Condenser) | 13 in. |
Depth (Indoor Unit) | 33.063 in. |
Height (Condenser) | 54.344 in. |
Height (Indoor Unit) | 11.313 in. |
Maximum Line Set Length | 164 ft. |
Moisture Removal (Pints per Hour) | 5.4 |
Product Weight | 246.6 lbs. |
Width (Condenser) | 37.406 in. |
Width (Indoor Unit) | 33.063 in. |
Dimensions and Measurements
CFM | 670 |
Cooling Area | 1500 sq. ft. |
Depth (Condenser) | 13 in. |
Depth (Indoor Unit) | 33.063 in. |
Height (Condenser) | 54.344 in. |
Height (Indoor Unit) | 11.313 in. |
Maximum Line Set Length | 164 ft. |
Moisture Removal (Pints per Hour) | 5.4 |
Product Weight | 246.6 lbs. |
Width (Condenser) | 37.406 in. |
Width (Indoor Unit) | 33.063 in. |
Included Components
Base Pan Heater Included | Yes |
Heater Included | Yes |
Includes Remote | Yes |
Included Components
Base Pan Heater Included | Yes |
Heater Included | Yes |
Includes Remote | Yes |
Characteristics and Features
Control Type | Remote |
Indoor Unit Type | Ceiling Cassette |
Installation Type | Mini Split |
Low Ambient Heating | Yes |
Refrigerant | R-32 |
Characteristics and Features
Control Type | Remote |
Indoor Unit Type | Ceiling Cassette |
Installation Type | Mini Split |
Low Ambient Heating | Yes |
Refrigerant | R-32 |
Electrical and Operational Information
Amperage | 32 |
Breaker Needs | 35 Amps |
Cooling BTU Capacity | 30000 |
dBA (High) | 42 |
dBA (Low) | 40 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Minimum Outdoor Temperature for Cooling | 5 °F |
Minimum Outdoor Temperature for Heating | -13 °F |
Number of Zones | 1 |
Power Source | Hardwired |
Voltage | 208 |
Zone Capacity | 1 |
Zone Cooling BTU | 30000 |
Electrical and Operational Information
Amperage | 32 |
Breaker Needs | 35 Amps |
Cooling BTU Capacity | 30000 |
dBA (High) | 42 |
dBA (Low) | 40 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Minimum Outdoor Temperature for Cooling | 5 °F |
Minimum Outdoor Temperature for Heating | -13 °F |
Number of Zones | 1 |
Power Source | Hardwired |
Voltage | 208 |
Zone Capacity | 1 |
Zone Cooling BTU | 30000 |
Warranty and Product Information
Certifications | AHRI |
DOE Regional Compliance | Nationwide |
EER2 | 15.2 |
Energy Star | Yes |
HSPF2 | 10.4 |
Manufacturer Warranty | 5 Year Parts |
SEER2 | 25 |
Title 20 Compliant | Yes |
Warranty and Product Information
Certifications | AHRI |
DOE Regional Compliance | Nationwide |
EER2 | 15.2 |
Energy Star | Yes |
HSPF2 | 10.4 |
Manufacturer Warranty | 5 Year Parts |
SEER2 | 25 |
Title 20 Compliant | Yes |
