LG 11K BTU Cooling 18 SEER2 One Zone Wall Mount Mini Split Package with Inverter Technology and Built-In Wi-Fi

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

For questions or assistance, please call (855) 484-3292 to speak to one of our experts.

LG's devotion to providing efficient ductless solutions can be seen across their entire catalog. The KSSAE121A is a part of LG's low-profile wall mounted Standard Efficiency product line. This ductless heat pump system features an easy installation process, a full-featured wireless handheld remote controller, and several operation modes aimed at increasing power and efficiency. The Standard Efficiency series also makes it easy to achieve comfort without the disruptive noise of central systems, the KSSAE121A indoor unit boasts sound levels as low as 21 dB. If you're looking to add well-rounded zoned comfort to your home, the KSSAE121A is a great choice.

Product Information:

• Inverter Technology: LG's heat pump systems are designed with efficient inverter technology. An electronic expansion valve and a variable speed compressor carefully regulate the refrigerant flow, reducing energy consumption and allowing for consistent, accurate temperatures.


• Built-In Wi-Fi: The KNSAE121A has built-in Wi-Fi, enabling the control of your LG air conditioner with smart enabled devices. Simply download the SmartThinQ® app on your smart device to get started.


• Gold Fin Protection: To ensure the reliability and longevity of the KUSAE121A's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.


• Quiet Design: The KNSAE121A indoor unit features a cross flow fan that restricts the pressure of air flow and lowers sound levels. Both the outdoor and indoor units enjoy reduced electrical and mechanical sound thanks to their brushless direct current fan motors.


• Self-Cleaning Coil: The KNSAE121A features a self-cleaning heat exchanger coil that automatically removes dirt and moisture. This helps to prevent unpleasant odors and to combat the formation of mold.


• Jet Temperature Control: Quickly get your zone comfortable with the Jet Heat and Jet Cool modes. With the press of a button, your system will temporarily adjust the set point and fan speed to provide rapid heating or cooling.


• Sleep Mode: With the Sleep Mode and Timer functions, you can set the indoor unit to save energy at night. Sleep Mode will incrementally adjust temperature for an hour before the Timer function automatically deactivates the unit.


• Dehumidify: LG's indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.


• Improved Air Quality: The KNSAE121A uses a dual filtration system to keep your air clean. A washable anti-fungal filter protects against dust and bacteria, while a 3M Micro Protection Filter captures microscopic irritants for pristine air quality.

Product Assurance:

• Certifications: AHRI
• Performance and Efficiency:
  • SEER2: 18
  • HSPF2: 8.5
• Manufacturer Warranty: 5 Year Parts

Required Components:

• Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
• Drain Line: The drain line removes the condensate from your system. It connects your system to the drain location of your choosing
• Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser
• Disconnect Box and Electrical Whip Kit: The disconnect box and whip kit gives an easy way to connect your outdoor condenser to your fuse box
• Base Pan Heater (Optional): The base pan heater stops ice from building up on the outdoor unit, preventing performance degradation and potential damage
• Outdoor Condenser Plastic Pad (Optional): An outdoor condenser pad provides an even surface on which to place your outdoor condenser
• Wall Bracket (Optional): A wall bracket provides a way to mount your outdoor condenser off the ground to keep it clear it of debris

Specifications:

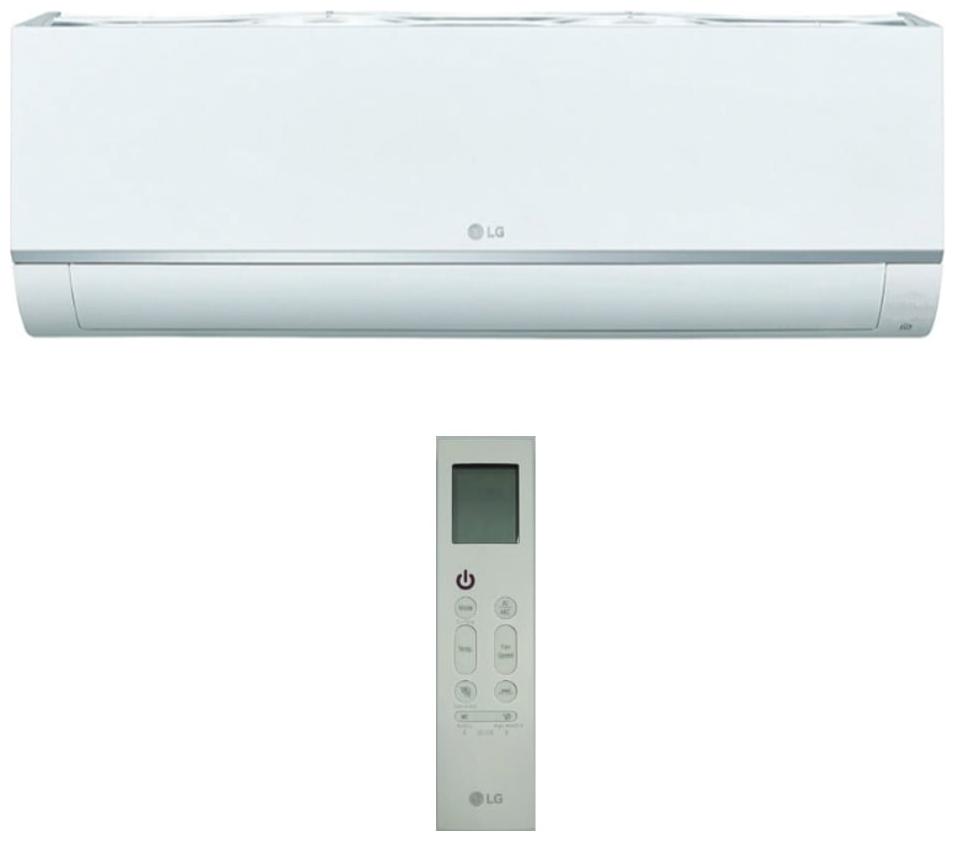

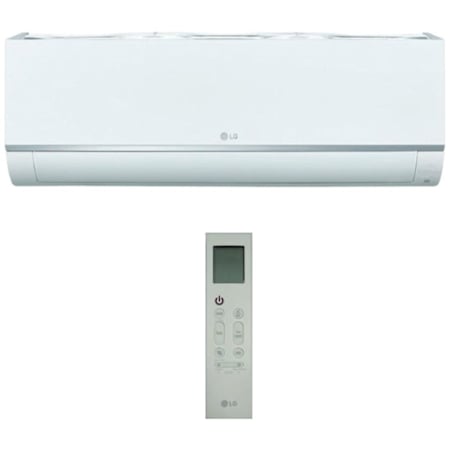

KNSAE121A

• Zone Cooling BTU: 12,000
• Sound Level: 21 to 42 dB
• Liquid Line Connection Size: 1/4" Inch
• Gas Line Connection Size: 3/8" Inch
• Depth: 7-7/16"
• Height: 12-1/8"
• Width: 32-15/16"
• Voltage: 208, 230V

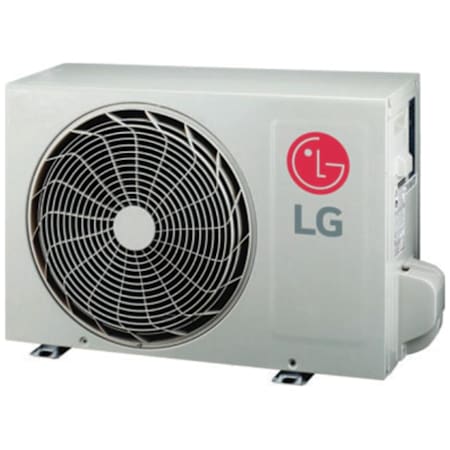

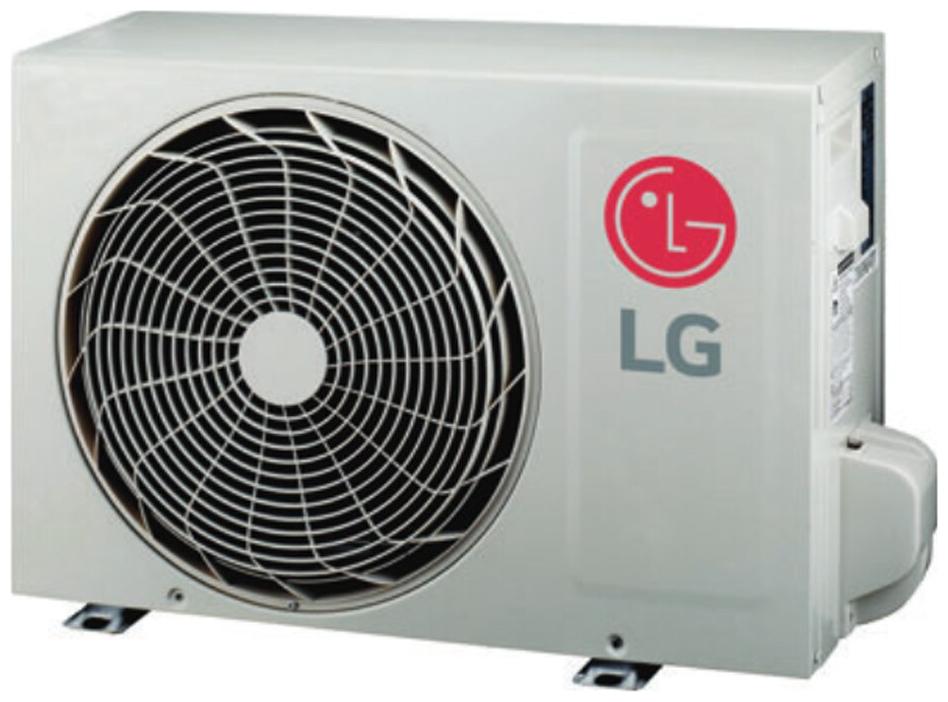

KUSAE121A

• Cooling BTU Capacity: 11,000
• Heating BTU Capacity: 12,000
• Zone Capacity: 1
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: 5 F
• Minimum Outdoor Temperature for Cooling: 14 F
• Liquid Line Connection Size: 1/4"
• Gas Line Connection Size: 3/8"
• Depth: 9-1/16"
• Height: 19-1/2"
• Width: 28-1/4"
• Recommended Breaker Size: 15 A
• Amperage: 10 A
• Voltage: 208, 230V
