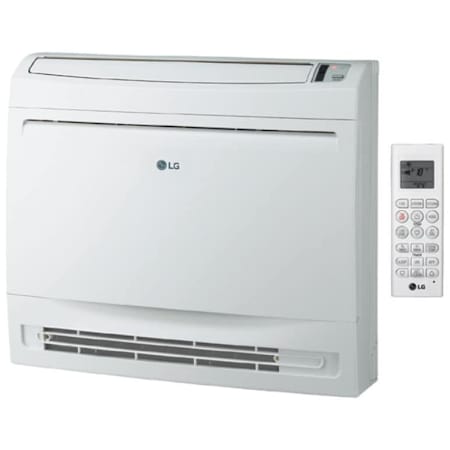

LG 9,000 BTU Cooling / 10,600 BTU Heating Mini Split Floor Console Indoor Unit with Quiet Design and Automated Operation

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

Indoor evaporator unit only, outdoor condenser required for proper functionality. For questions or assistance building a multi-zone system, please call (855) 484-3292 to speak to one of our experts.

Product Information:

Enhanced Connectivity
• LG's new R-32 mini split units require a 5-conductor cable (Not Included) instead of the standard 4-conductor, improving communication reliability and enabling a new leak detection feature.
Installation Flexibility
• Able to be mounted to the floor or wall, LG's low wall console is a perfect solution to cooling and heating rooms with limited space.
Quiet Design
• The low wall console can operate at volumes as low as 27 dB. LG utilizes a cross flow fan design that reduces noise levels by limiting the surface pressure of air flow as well as a brushless motor, which ensures minimal electrical and mechanical noise.
Jet Temperature Control
• Quickly get your zone comfortable with the Jet Heat and Jet Cool modes. With the press of a button, your system will temporarily adjust the set point and fan speed to provide rapid heating or cooling.
Automated Operation
• Auto operation mode continually compares your zone's current and desired temperatures and uses that data to intelligently adjust the unit's fan speed and refrigerant flow to provide optimal comfort.
Sleep Mode
• With the Sleep Mode and Timer functions, you can set this indoor unit to save energy at night. Sleep Mode will incrementally adjust temperature for an hour before the Timer function automatically deactivates the unit.
Improved Air Quality
• LG's low wall consoles feature washable anti-bacterial filters to keep your air clean and free of microscopic irritants.
Hot-Start
• When the Hot-Start function is enabled, the KNUQB091A's fan will not engage until the outdoor condenser has had the opportunity to warm the indoor coil. This prevents the unit from blowing cold air during heating operations.

Specifications:

• Zone Cooling BTU: 9,000
• Zone Heating BTU: 10,600
• Sound Level: 27 to 38 dB
• Liquid Line Connection Size: 1/4" Inch
• Gas Line Connection Size: 3/8" Inch
• Depth: 8-1/4"
• Height: 23-5/8"
• Width: 27-9/16"
• Amperage: 0.7 A
• Voltage: 208, 230V

Product Assurance:

• Certifications:
  • AHRI
  • CSA
• Manufacturer Warranty: 5 Year

Required Components:

• Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
• Drain Line: The drain line removes the condensate from your system. It connects your system to the drain location of your choosing
• Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser
