The Kwikset 506TNL-26DS has been discontinued
** See similar or replacement items below **
Item # bci4009883
Kwikset Tustin Single Cylinder Interconnected Lever Set and Deadbolt with SmartKey from the Signature Series
Model: 506TNL-26DS|Item: bci4009883
from theTustin Collection
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Features:
- Exceeds criteria for BHMA Grade 2 certification
- Durable all metal construction
- Simply install on doors with 1-3/8" to 1-3/4" thickness
- Kwikset offers a 5 year finish and limited lifetime mechanical warranty
- Complies with standards of the Americans with Disabilities Act (ADA)
- Meets fire code rating for emergency panic exit
- Reversible handing installs on left or right handed doors
Product Technologies

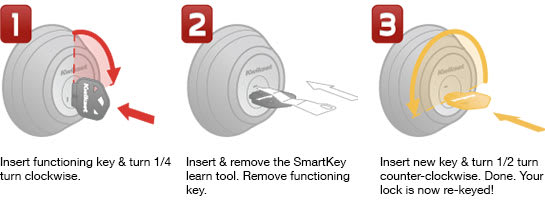

SmartKey® Re-key Technology: Kwikset's SmartKey® technology provides the flexibility to re-key your own lock in less than 30 seconds without removing the lock from the door. SmartKey® removes the hassle of lost or stolen keys with the ability to re-key your lock in just 3 simple steps.
Specifications:
- Backset: 2-3/8"
- Cross Bore: 2-1/8"
- Edge Bore: 1"
- Door Thickness: 1-3/8" to 1-3/4"
- Handing: Reversible Left or Right
- Handle Projection: 2-3/4"
- Trim Height: 10"
- Trim Width: 2-13/16"
- Product Weight: 3 lbs.
- Latch Faceplate: Square Corner
- Cylinder: SmartKey 5 Pin
Dimensions and Measurements
Backset | 2-3/8" |
Center to Center | 5.5 in. |
Cross Bore | 2-1/8" |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
Edge Bore | 1" |
Handle Projection | 2.75 in. |
Product Weight | 3 lbs. |
Trim Height | 10 in. |
Trim Width | 2.84 in. |
Dimensions and Measurements
Backset | 2-3/8" |
Center to Center | 5.5 in. |
Cross Bore | 2-1/8" |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
Edge Bore | 1" |
Handle Projection | 2.75 in. |
Product Weight | 3 lbs. |
Trim Height | 10 in. |
Trim Width | 2.84 in. |
Included Components
Cylinder Included | Yes |
Included Components
Cylinder Included | Yes |
Characteristics and Features
Concealed Screws | Yes |
Cylinder | SmartKey 5 Pin |
Cylinder Type | Single Cylinder |
Function | Keyed Entry |
Handing | Left, Reversible, Right |
Handle Design | Tustin |
Handle Material | Metal |
Handle Style | Lever |
Interconnected | Yes |
Keyway | KW1 |
Latch Faceplate | Square Corner |
Lever Shape | Wave |
Lock Style | Two Point |
Material | Zinc |
Panic Proof | Yes |
Rosette Shape | Rectangle |
Theme | Traditional |
Characteristics and Features
Concealed Screws | Yes |
Cylinder | SmartKey 5 Pin |
Cylinder Type | Single Cylinder |
Function | Keyed Entry |
Handing | Left, Reversible, Right |
Handle Design | Tustin |
Handle Material | Metal |
Handle Style | Lever |
Interconnected | Yes |
Keyway | KW1 |
Latch Faceplate | Square Corner |
Lever Shape | Wave |
Lock Style | Two Point |
Material | Zinc |
Panic Proof | Yes |
Rosette Shape | Rectangle |
Theme | Traditional |
Manufacturer Technology
SmartKey | Yes |
Manufacturer Technology
SmartKey | Yes |
Warranty and Product Information
ADA | Yes |
ANSI Certification | A117.1 |
Approved for Commercial Use | No |
BHMA Certification | Grade 2 |
Certifications | ANSI, UL |
Collection | Tustin |
Country Of Origin | Mexico |
Fire Rated | Yes |
Manufacturer Warranty | 5 Year Finish, Limited Lifetime Mechanical |
Series | Signature Series |
Warranty and Product Information
ADA | Yes |
ANSI Certification | A117.1 |
Approved for Commercial Use | No |
BHMA Certification | Grade 2 |
Certifications | ANSI, UL |
Collection | Tustin |
Country Of Origin | Mexico |
Fire Rated | Yes |
Manufacturer Warranty | 5 Year Finish, Limited Lifetime Mechanical |
Series | Signature Series |
