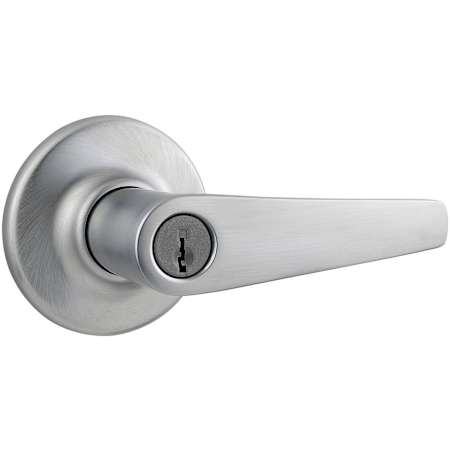

Kwikset Maximum Series Delta Storeroom Keyed Entry Door Lever
Model: 462DL-26D|Item: bci499787
from theDelta Collection
$44.43
Finish: Satin Chrome -
41 In Stock
Free Shipping on orders over $49.00!
Leaves the Warehouse in 1 to 2 business days
-Details
Kwikset Maximum Series Delta Storeroom Function Leverset
Exterior Lever only unlocks while key is turned. Interior Lever is always free.
- Interior Rosette has EXPOSED SCREWS and are not concealed on the interior side.
- Includes Standard Round Corner Strike Plate Part Number 83796 (Strike Plate is on Door Jamb). For Square Corner Strike Plate See Product: Kwikset 83437. For a T-Strike Plate See: Kwikset 83028.
- Door Prep: Cross bore 2-1/8" Edge Bore 1" Latch Face 1" x 2-1/4"
- Door thickness: 1-3/8"-1-3/4" doors standard. 2-1/4" doors optional on 200 and 400 functions only.
- Cylinder: 5-pin
- Bolt: 1/2" throw
Dimensions and Measurements
Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
Bore Hole | 2-1/8" |
Door Thickness | 1-5/8", 1-1/2", 1-3/4", 1-3/8" |
Edge Bore | 1" |
Handle Length | 3.625 in. |
Handle Projection | 1.9375 in. |
Trim Height | 2.625 in. |
Trim Width | 2.625 in. |
Dimensions and Measurements
Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
Bore Hole | 2-1/8" |
Door Thickness | 1-5/8", 1-1/2", 1-3/4", 1-3/8" |
Edge Bore | 1" |
Handle Length | 3.625 in. |
Handle Projection | 1.9375 in. |
Trim Height | 2.625 in. |
Trim Width | 2.625 in. |
Characteristics and Features
Concealed Screws | No |
Cylinder | 5 Pin |
Function | Vestibule, Keyed Entry, Storeroom |
Handing | Left, Reversible, Right |
Handle Material | Metal |
Keyway | KW1 |
Latch Faceplate | Square Corner, Drive-In, Round Corner |
Lever Shape | Straight |
Locking Mechanism | Thumbturn |
Rosette Shape | Round |
Theme | Transitional |
Characteristics and Features
Concealed Screws | No |
Cylinder | 5 Pin |
Function | Vestibule, Keyed Entry, Storeroom |
Handing | Left, Reversible, Right |
Handle Material | Metal |
Keyway | KW1 |
Latch Faceplate | Square Corner, Drive-In, Round Corner |
Lever Shape | Straight |
Locking Mechanism | Thumbturn |
Rosette Shape | Round |
Theme | Transitional |
Warranty and Product Information
Approved for Commercial Use | No |
BHMA Certification | Grade 3 |
Collection | Delta |
Series | Kwikset Series |
Warranty and Product Information
Approved for Commercial Use | No |
BHMA Certification | Grade 3 |
Collection | Delta |
Series | Kwikset Series |
