Features:

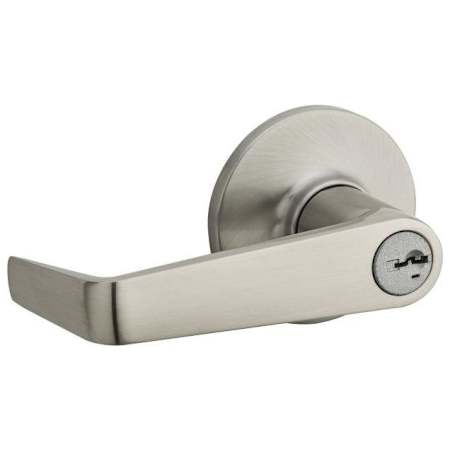

• Single Cylinder Keyed Entry Door Lever Set featuring the Carson Lever, Interior Push Button and SmartKey®
• ANSI/BHMA A156.5, Security Grade 3
• Constructed from High Quality Steel
• Features a Reversible, Symmetrical Design for Right or Left Handed Doors
• Simple One-person Installation; No Extra Hands Needed
• Round Latches Available
• Lifetime Mechanical, 5 Year Finish Warranty
• Lever Functions Meet 4.13.9 ADA Requirements
• Meets UL 3 Hour Rire Rating

Key Product Attributes:

• Keyed Entry Function (Single Cylinder): Keyed entry levers can be locked from the exterior with a key, and then locked or unlocked from the inside with a push-button. Keyed entry sets are most commonly used in residential locations due to safety and ease of use, and are primarily used for securing entrances or private offices.
• Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

SmartKey®:

• This technology allows you to re-key your lock in seconds with 3 simple steps and features stainless steel racks, pins, and side locking bar for increased strength and security.

Specifications:

• Backset: Adjustable to 2-3/8" or 2-3/4"
• Cross Bore: 2-1/8"
• Edge Bore: 1" Standard
• Door Thickness: 1-3/8", 1-3/4"
• Handing: Reversible
• Lever Length: 3.80"
• Rose Diameter: 2.56"
• Lever Projection: 1.96"
• Latch Faceplate: Radius Corner
• Cylinder: SmartKey® 5 Pin
