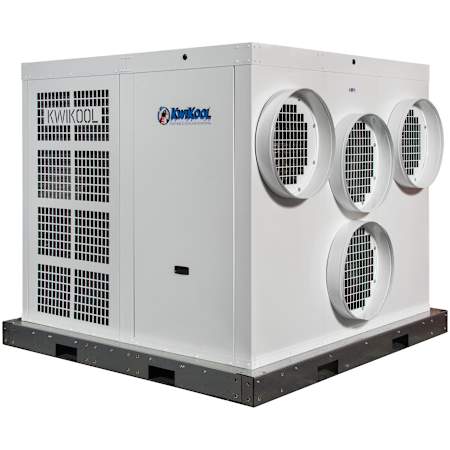

KwiKool 270,000 BTU Cooling / 166,600 BTU Heating 460V Air Cooled Portable Air Conditioner

The KPO25-43H-3 model with high static air flow offers 25 tons or 270,000 Btus of cooling and 48 Kw heat strips or 166,600 Btus of heat in an incredibly small package. The super small 6' x 6' footprint of this unit allows it to be placed as close to the heat load as possible. The unit must be placed outside of the space being cooled with four 25-ft. lengths of 20-in. duct run into space, two supply and two return ducts. The high static blower moves cold and return air supply up to 75 feet. The KPO25-43-3 model is 66? wide, 66? long, and 60? tall, which allows for up to eight units to be loaded on a standard flatbed truck. The same flatbed truck can only transport three comparable 25-ton package unit. The heavy-duty 12 gauge steel base offers fork lift skid access for easy movement, setup, and transport. The variable frequency drive gives the condenser motor low ambient control down below freezing. A phase monitor provides electrical protection. The unit must be hard wired by an electrician to a 460V / 50 amp three phase circuit. Unit includes a high lift condensate pump with overflow safety cutoff.

Features:

• 270,000 BTU cooling and 166600 BTU heating
• Effectively cools up to 9200 sq ft, ideal for making your living space comfortable
• The super small 6' x 6' footprint of this unit allows it to be placed as close to the heat load as possible
• Heavy-duty 12 gauge steel base offers fork lift skid access for easy movement
• Condenser motor is regulated by a variable frequency drive for low ambient control down to below freezing
• KPO25-43 model size allows for up to eight units to be loaded on a standard flatbed truck
• Includes a high lift condensate pump with overflow safety cutoff
• Covered under a 1 year parts and labor manufacturer warranty

General Information:

• Type: Portable Air Conditioners
• Operating Mode: Heating and Cooling
• Refrigerant Type: R-454B
• Fan Speeds: 1
• Control Type: Touch

Performance:

• BTU Cooling: 270,000
• BTU Heating: 166,600
• Moisture Removal (Pints Per Hour): 20.93
• CFM: 9,500
• Cooling Area: 9,200 Sq. Ft.

Electrical Data:

• Voltage: 460V
• Frequency: 60 Hz
• Amperage: 80A

Dimensions:

• Height: 61-1/2"
• Width: 66"
• Depth: 66"
• Product Weight: 2040 lbs

Product Assurance:

• Made in America
• Approved for Commercial Use
• Warranty: 1 Year Parts and Labor
