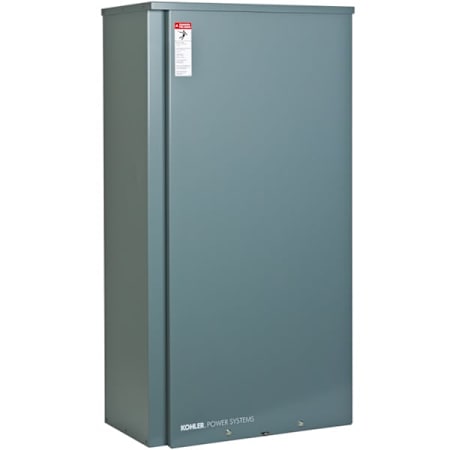

Kohler Power Systems RXT Series 400-Amp (277 / 480V) 3-Phase Outdoor Automatic Transfer Switch

Features:

Kohler RXT Series 400-Amp Automatic Transfer Switch

• For use with 48RCL 277/480V 3-Phase models

• Only compatible with Kohler generators with RDC2/DC2 controllers

Corrosion-Resistant NEMA 3R Aluminum Enclosure

• Approved for indoor or outdoor installations

• Switch can be padlocked for additional safety

Standard Features

• Allows utility voltage display on RDC2/DC2 controller

• Interface board for connection to the RDC2/DC2 controller

• Double throw inherently interlocked design

Added Safety

• Contractor manually operable for maintenance purposes

Standard Installation

• Requires a sub-panel for overload protection

Rated at 400-Amps at 277/480-Volts

5-Year Limited Warranty

Overview:

• Transfer Switch Style: Standard Installation
• Product Weight: 130 lbs
• Width: 24"
• Height: 48-1/8"

Specifications:

• Voltage: 277, 480V
• Frequency: 60 Hz
• Electrical Phases: 3
• Max Generator Input: 400A
• Max Utility Input: 400A
• Enclosure Material: NEMA 3R

Product Assurance:

• Certifications: UL
• Warranty: 5 Year
