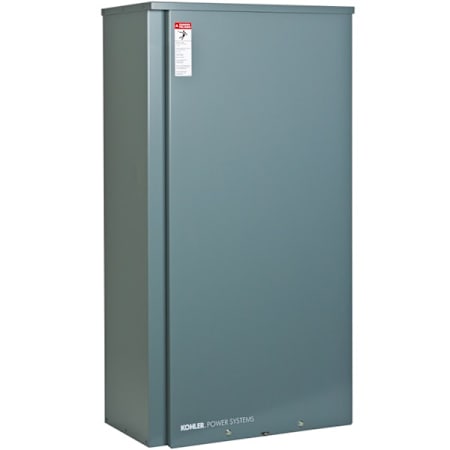

Kohler Power Systems RXT Series 200-Amp (120 / 240V) 3-Phase Outdoor Automatic Transfer Switch

Features:

Kohler RXT Series 200-Amp Automatic Transfer Switch

• For use with 48RCL 120/240V 3-Phase models

• Only compatible with Kohler generators with RDC2/DC2 controllers

Corrosion-Resistant NEMA 3R Aluminum Enclosure

• Approved for indoor or outdoor installations

• Switch can be padlocked for additional safety

Standard Features

• Allows utility voltage display on RDC2/DC2 controller

• Interface board for connection to the RDC2/DC2 controller

• Double throw inherently interlocked design

Added Safety

• Contractor manually operable for maintenance purposes

Standard Installation

• Requires a sub-panel for overload protection

Rated at 200-Amps at 120/240-Volts 3-Phase

5-Year Limited Warranty

Overview:

• Transfer Switch Style: Standard Installation
• Product Weight: 30 lbs
• Width: 18-3/16"
• Height: 26-13/16"

Specifications:

• Voltage: 120, 240V
• Frequency: 60 Hz
• Electrical Phases: 3
• Max Generator Input: 200A
• Max Utility Input: 200A
• Enclosure Material: NEMA 3R

Product Assurance:

• Certifications: UL
• Warranty: 5 Year
