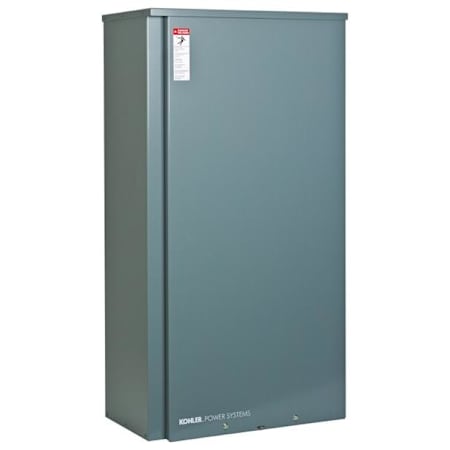

Kohler Power Systems RXT 400-Amp 120 / 208V 3-Phase Standard Automatic Transfer Switch

Features:

• Kohler RXT Series 400-Amp Automatic Transfer Switch
• For use with 48RCL 120/208V 3-Phase models
• Only compatible with Kohler generators with RDC2/DC2 controllers
• Corrosion-Resistant NEMA 3R Aluminum Enclosure
• Approved for indoor or outdoor installations
• Switch can be padlocked for additional safety
• Standard Features
• Allows utility voltage display on RDC2/DC2 controller
• Interface board for connection to the RDC2/DC2 controller
• Double throw inherently interlocked design
• Added Safety
• Contractor manually operable for maintenance purposes
• Standard Installation
• Requires a sub-panel for overload protection
• Rated at 400-Amps @ 120/208-Volts
• 5-Year Limited Warranty

Overview:

• Transfer Switch Style: Standard Installation
• Product Weight: 90 lbs
• Depth: 12-7/8"
• Width: 22"
• Height: 42"

Specifications:

• Voltage: 120, 208V
• Frequency: 60 Hz
• Electrical Phases: 3
• Max Generator Input: 400A
• Max Utility Input: 400A
• Enclosure Material: NEMA 3R

Product Assurance:

• Certifications: UL
• Warranty: 5 Year
