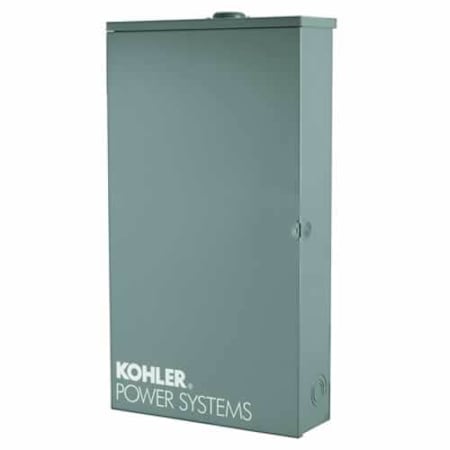

Kohler Power Systems RDT Series 400-Amp (120 / 240V) Single-Phase Outdoor Service Disconnect Automatic Transfer Switch

Features:

Standard Features

• Service Entrance Rated

• UL listed

• Two-pole, single-phase, open-transition transfer switch

• Double throw inherently interlocked design

• Solid Neutral

• 220/240 VAC, 50/60 Hz (jumper)

• Contractor manually operable for maintenance purposes

• NEMA 3R (outdoor) enclosure

MPAC500 Controller Features

• User-friendly interface and easy-to-find international symbols

• LED indication of system faults

• Test button (with or without load)

• Exercise set button

• Single-phase voltage sensing on both sources

• Line-to-line frequency sensing

• Fixed time delays

5-year limited warranty

Overview:

• Transfer Switch Style: Service Disconnect
• Product Weight: 101 lbs
• Width: 24-11/16"
• Height: 57"

Specifications:

• Voltage: 120, 240V
• Frequency: 60 Hz
• Electrical Phases: 1
• Max Generator Input: 400A
• Max Utility Input: 400A
• Enclosure Material: NEMA 3R

Product Assurance:

• Certifications: UL
• Warranty: 5 Year
