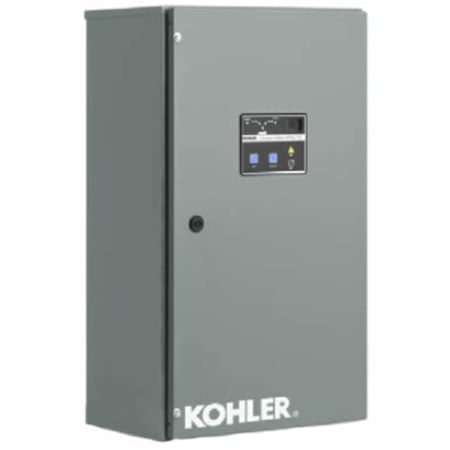

Kohler Power Systems KSS Series 800-Amp (120 / 240V) 3-Phase Automatic Transfer Switch



Features:

Kohler KSS-Series 800-Amp Automatic Transfer Switch

• Compatible with all Kohler 120/240V 3-phase generators

Corrosion-Resistant NEMA 3R Aluminum Enclosure

• Lockable, approved for indoor and outdoor installations

Double-Throw, Mechanically Interlocked Design (BBM)

• Provides a rugged, contractor design for reliable switching

Decision-MakerMPAC 1200 Controller with LED Display and Indicators

• Complete programming and viewing capability at the door

• LED indicators and programmable voltage/Hz pickup/dropout settings

Programmable Time Delays and Generator Exerciser

• Easy setup so you can pick the time that works best for you

• Time based load control for added safety

Added Features

• High withstand/closing ratings for use with specific breakers only (see spec)

• Front-accessible contacts for easy inspection

Standard Installation

• Requires a sub-panel for overload protection

Rated at 800-Amps at 240V 3-Phase

Please See Spec Sheet For Codes/Standards/Certifications

Standard 1-Year Limited Warranty



Overview:

• Transfer Switch Style: Standard Installation
• Product Weight: 498 lbs
• Width: 34"
• Height: 76-1/8"

Specifications:

• Voltage: 120, 240V
• Frequency: 60 Hz
• Electrical Phases: 3
• Max Generator Input: 800A
• Max Utility Input: 800A
• Enclosure Material: NEMA 3R

Product Assurance:

• Certifications: UL
• Warranty: 1 Year
