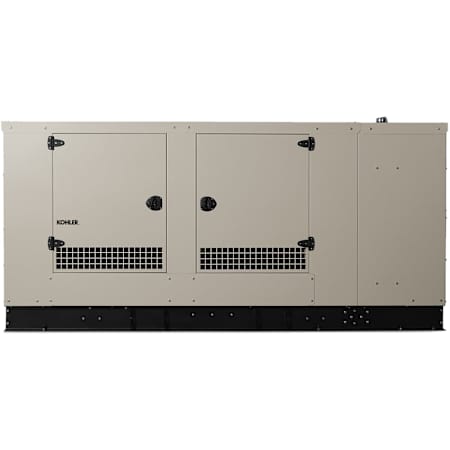

Kohler Power Systems KG Series 125 kW (277 / 480V) Three-Phase Liquid Cooled Multi-Fuel Standby Generator (Steel)

Please Note - Requires Loading Dock or Forklift For Delivery

Features:

Kohler125kW Light Commercial Emergency Generator

• For commercial buildings with 277/480V 3-Phase service

Premium 5-Year / 2000 Hour Limited Warranty

• Backed by Kohler's extraordinary reliability and performance

Runs on Clean Burning Natural Gas and LP Vapor

• Simple field conversion, while maintaining emission certification

Industrial-Grade, Kohler 6.2L Liquid-Cooled Engine

• Powerful, reliable Industrial-Grade design with hydraulic valve lifters

• Runs at 1800 RPM for fuel efficient and quieter operation

Remarkable Power Quality

• Exceptional voltage and frequency regulation with ultra-low THD

• Clean power for even the most sensitive electronics

Fast-ResponseX Excitation System

• Easily handle full loads within 10 seconds

Kohler APM402 Controller

• Provides advanced control, system monitoring and system diagnostics

• Integrated hybrid voltage regulator with +/- 0.5% regulation

• Remote communication thru a PC via network / serial configuration

Digital Display and Menu Control

• Provides easy to read local data access

Sound-Attenuating Steel Enclosure

• Fade, scratch, and corrosion-resistant powder-baked finish

• Internal silencer and acoustic insulation keeps dB under 70 at 7M

Local Emergency Stop Switch

• Provides added safety when generator is operating

Includes Pre-Installed Block Heater

• Provides easier generator starting and quicker warm up times

***Not Compatible For Off-Grid Applications***

• Approved for stationary standby applications in locations served by a reliable utility source

Overview:

• Product Category: Standby Generator
• Generator Features: Low Oil Alert/Shutdown
• Product Weight: 3562 lbs
• Length: 138-13/16"
• Width: 45-3/8"
• Height: 65-1/2"

Specifications:

• Voltage: 277, 480V
• Frequency: 60 Hz
• Running Wattage: 125,000 Watts
• Fuel Type: Liquid Propane, Natural Gas
• NG Power Capacity: 125,000 Watts
• LP Power Capacity: 125,000 Watts
• NG Fuel Consumption @ 50% Load: 1,084 ft3/hr
• NG Fuel Consumption @ 100% Load: 1,678 ft3/hr
• LP Fuel Consumption @ 50% Load: 11 gallons/hr
• LP Fuel Consumption @ 100% Load: 19 gallons/hr
• Amperage: 188A
• Decibel Rating @ 7m: 71 dbA
• Enclosure Material: Steel
• Mounting Pad: Concrete (Not Included)
• Cooling Type: Liquid Cooled

Engine:

• Engine Brand: Kohler
• Starting System: 12v Auto Start
• Cubic Capacity: 6200 CC
• RPM: 1800 RPM
• Low Oil Alert/Shutdown: Yes

Product Assurance:

• Certifications: UL
• Warranty: 5 Year
