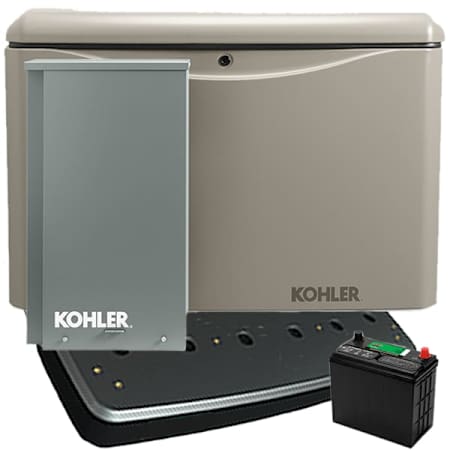

Kohler Power Systems RCL Series 20kW (120 / 240V) Single-Phase Air Cooled Multi-Fuel Standby Generator with RXT 200a Automatic Transfer Switch, Pad and Battery



Features:

20kW (LPG) / 18kW (NG) Air-Cooled Standby Generator Package

• Fully Automatic Operation - Includes Automatic Transfer Switch

Premium 5-Year / 2000 Hour Limited Warranty

• Backed by Kohler's extraordinary reliability and performance

RXT 200A Service Entrance Rated Outdoor Automatic Transfer Switch

• NEMA 3R Enclosure mounts between meter and main service panel

• Built-In Load Shed - Manage (2) HVAC + (4) Non-Essential loads***

Kohler Command PROOHV Engine

• Meets emission regulations for U.S. EPA and California

• Powerful and reliable engine with hydraulic valve lifters

New 100% Corrosion-Proof Aluminum Enclosure

• Aluminum base can be mounted on gravel or cement pad

• Meets 181 MPH wind rating; Impact-resistant down to -30 degrees F

Powerful Performance with PowerBoost Technology

• Greater motor-starting ability for large electrical loads

Premium Power Quality (+/-1% Voltage Regulation)

• Protects sophisticated electronics with low distortion (<5%THD)

Fast Response Time

• Kohler generators restore power in as little as 10 seconds

New Silencer Reduces Sound Levels and Provides Quiet Operation

• Maintains neighborhood solitude - approx. 69 dB(A) at 7 m (23 ft)

RDC2 (6-Button) Digital Controller

• Glare-resistant, 2-line 16-character display - No More Codes

• ATS status via LED lights on controller; Built-In 2.5A Battery Charger

• Real time clock allows you to easily set weekly exercise

Remote Monitoring System (Included)

• Built-in Ethernet card, no hardware needed

• Requires OnCue Plus Wireless Radio Kit For Wireless Monitoring (Sold Separately)

Kohler Energy Management App

• Get real-time alerts on generator status, remote control and maintenance records

Easier Installation

• Streamline design reduces time required to install generator

Installation Flexibility*

• Can be installed within 18" of a building / home

• *Always check local building codes

***Requires PRM (Sold Separately)

Includes QwikHurricane Universal Generator Pad

• Lightweight, Easy-To-Install Design

• Forms a solidus gel and weighs 330 lbs. when filled



Overview:

• Product Category: Standby Generator
• Generator Features: Low Oil Alert/Shutdown
• Battery Included
• Product Weight: 555 lbs
• Length: 47"
• Width: 26-3/16"
• Height: 32-3/16"

Specifications:

• Voltage: 120, 240V
• Frequency: 60 Hz
• Running Wattage: 20,000 Watts
• Fuel Type: Liquid Propane, Natural Gas
• NG Power Capacity: 18,000 Watts
• LP Power Capacity: 20,000 Watts
• NG Fuel Consumption @ 50% Load: 161 ft3/hr
• NG Fuel Consumption @ 100% Load: 281 ft3/hr
• LP Fuel Consumption @ 50% Load: 2 gallons/hr
• LP Fuel Consumption @ 100% Load: 4 gallons/hr
• Amperage: 83A
• Decibel Rating @ 7m: 64 - 69 dbA
• Transfer Switch: Service Disconnect
• Enclosure Material: Aluminum
• Mounting Pad: Composite (Included)
• Cooling Type: Air Cooled

Engine:

• Engine Brand: Kohler
• Starting System: 12v Auto Start
• Cubic Capacity: 999 CC
• RPM: 3600 RPM
• Low Oil Alert/Shutdown: Yes

Product Assurance:

• Certifications: UL
• Warranty: 5 Year
