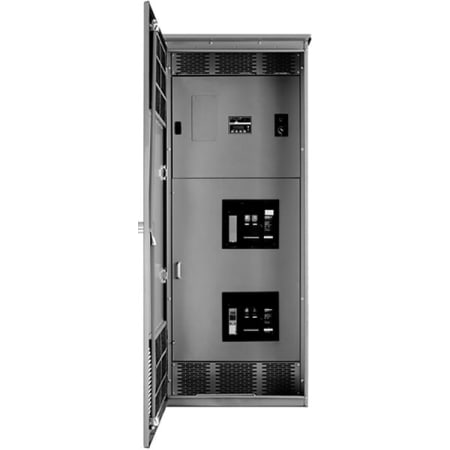

Kohler KEP 600-Amp 120 / 208V 3-Phase Service Disconnect Automatic Transfer Switch

Features:

Kohler KEP-Series 600-Amp Automatic Transfer Switch
• Compatible with all Kohler 120/208V 3-phase generators
Service Entrance Rated - 2-Position Switch with Lockable Cover
• Eliminates need to have a separate, upstream utility source CB/disc.
Corrosion-Resistant NEMA 3R Aluminum Enclosure
• Lockable, approved for indoor and outdoor installations
Heavy-Duty Brushless Gear Motor and Operating Mechanism
• Mechanical interlocking, for long life with minimal maintenance
Decision-Maker® MPAC 1500 Controller with Backlit 4-Line LCD
• Allows for easy programming and status viewing right on the door
• Source available, switch positions, service required (faults) and "not in auto"
Fully-Programmable with Modbus Communication Standard
• Vol/Hz pickup/dropout, time delays, generator exerciser
• RS-485/Ethernet communication standard and 2 in-puts / 2 out-puts
Separate Utility and Generator Set Power Switching Units
• Provide redundancy and allows for quick, easy service
• Fully enclosed silver alloy contacts provide high withstand rating
Rated at 600-Amps @ 208V
Please See Spec Sheet For Codes/Standards/Certifications
Standard 1-Year Limited Warranty

Overview:

• Transfer Switch Style: Service Disconnect
• Product Weight: 441 lbs
• Depth: 19-1/8"
• Width: 39-3/16"
• Height: 48"

Specifications:

• Voltage: 120, 208V
• Frequency: 60 Hz
• Electrical Phases: 3
• Max Generator Input: 600A
• Max Utility Input: 600A
• Enclosure Material: NEMA 3R

Product Assurance:

• Certifications: UL
• Warranty: 1 Year
