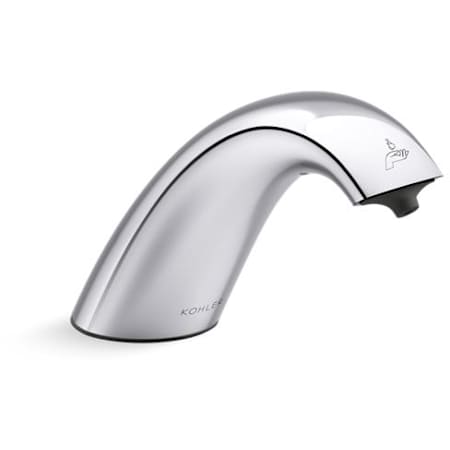

Kohler Curve Touchless Foaming Soap Dispenser, AC Powered

This Curve 54-ounce high-capacity touchless foaming soap dispenser is ready to tackle high-traffic applications. With solid-brass construction, this AC-powered dispenser is equipped with an above-the-counter light to let you know when soap supply is low, and a vandal-resistant sensor to prevent soap waste.

Features

• Soap dispensing volume can be adjusted to 0.8 mL, 1.2 mL, 1.6 mL, or 2.0 mL
• 54 oz (1600 mL) high-capacity soap reservoir
• Optional 27 oz. (800 ml) low-capacity soap reservoir (sold separately)
• Sensor range adjustable from 1" to 4" (25 to 101 mm). Default set at approximately 2-3/4" (69 mm)
• Maintenance/cleaning mode is activated for 30 seconds when sensor is blocked for 10 seconds
• Vandal-resistant sensor delays dispensing for twenty seconds if activated 4 times in under 5 seconds
• Low soap above-the-counter indicator
• Easy below-the-counter refill
• AC-powered operation—no batteries to replace
• Requires low (1-20 cps or gr/m-s) viscosity foam soap with no suspended particles. Please see Installation Guide or Maintenance and Use Guide for specific soap recommendations
• Kohler soap (sold separately) recommended for optimized performance and longevity

Material

• Cast brass construction for durability and reliability

Installation

• Optional deep rough-in mounting hardware kit for counters greater than 2" (50 mm) thick and less than 4-1/2" (114.3 mm) thick sold separately
