King Slide 9 Inch Full Extension Concealed Undermount Drawer Slide with 100 Lbs. Max Weight Capacity and Soft Close for 16 mm Thick Drawers - Pair
Model: 1A68F229|Item: bci4385303
$45.87
Finish: Zinc -
Special Order
Free Shipping on orders over $49.00!
Leaves the Warehouse in 5 to 10 business days
-Details
9 Inch Full Extension Concealed Undermount Drawer Slide with 100 Lbs. Max Weight Capacity and Soft Close for 16 mm Thick Drawers - Pair
Features:
- Designed to support 75-100 pounds of weight
- Enhanced silent soft-closing feature with light opening force
- Ultra smooth gliding motion with high rigidity and stability
- Simple assembly and removal of drawer with the front release latch
- Slides can be installed in either panel (frameless) or face frame cabinets
- Durable damping system with fast response capability
- Includes a limited lifetime manufacturer warranty
Specifications:
- Recommended Drawer Length: 9"
- Slide Length: 9.38"
- Full Extension: 16.625''
- Slide Type: Concealed Undermount

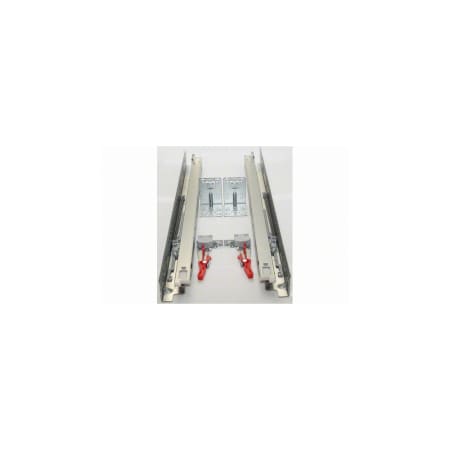

- Includes Locking Devices and Rear Mounting Bracket required for installation. Screws not included
- High dynamic loading capacity of 34kg (75lb) with 100,000 life cycles, or 45kg (100lb) with 50,000 life cycles
- Material: Galvanized Steel
- Compatible with 16mm Drawer Thickness
- Cabinet Type: Face Frame, Panel (Frameless)
- Quantity: 2
- BHMA Certification: Grade 1
Dimensions and Measurements
Drawer Length | 9 in. |
Extension | 10.0625 in. |
Height | 0.14 in. |
Length | 9, 9.38 in. |
Max Capacity (Pounds) | 85, 100 lbs. |
Nominal Length | 9 in. |
Product Weight | 3 lbs. |
Quantity | 6, 2 |
Width | 0.625 in. |
Dimensions and Measurements
Drawer Length | 9 in. |
Extension | 10.0625 in. |
Height | 0.14 in. |
Length | 9, 9.38 in. |
Max Capacity (Pounds) | 85, 100 lbs. |
Nominal Length | 9 in. |
Product Weight | 3 lbs. |
Quantity | 6, 2 |
Width | 0.625 in. |
Characteristics and Features
Adjustable | Yes |
Cabinet Type | Panel (Frameless), Face Frame |
Disconnect Style | Lever |
Extension Type | Full Extension |
Installation Type | Undermount |
Material | Steel |
Push to Open | No |
Self Closing | No |
Slide Type | Concealed |
Soft Close | Yes |
Characteristics and Features
Adjustable | Yes |
Cabinet Type | Panel (Frameless), Face Frame |
Disconnect Style | Lever |
Extension Type | Full Extension |
Installation Type | Undermount |
Material | Steel |
Push to Open | No |
Self Closing | No |
Slide Type | Concealed |
Soft Close | Yes |
Warranty and Product Information
BHMA Certification | Grade 1 |
Manufacturer Warranty | Limited Lifetime |
Series | 1A68F |
Warranty and Product Information
BHMA Certification | Grade 1 |
Manufacturer Warranty | Limited Lifetime |
Series | 1A68F |
