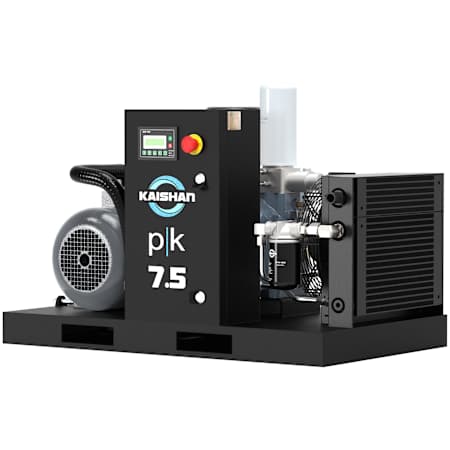

Kaishan 7.5 HP 150 Max PSI Single Stage Floor Mounted Electric (230 Volt) Air Compressor
Model: PK-7.5A3F0S8U|Item: bci5304460
Details
Features:
- Available in 5 and 7.5 HP, 16-24 CFM
- Small and compact with the target price of a piston-style compressor
- Competitive warranty (1 year plus additional year with aftermarket service kit purchase 180800-001 - sold separately)
- Highly serviceable
Specifications:
- Certifications: UL
- Fuel Type: Electric
- Height: 29"
- Width: 23"
- Length: 38"
- Product Weight: 406 lbs
- Warranty: 1 Year
Included Accessories:
- Pressure Gauge Included
- Pressure Regulator Included
- Filter Included
Pump Specifications:
- Oil Sight Glass Included
- Lubrication Type: Oil Lubricated
- CFM: 22
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 7-1/2 HP
- Amperage: 7.03A
- Voltage: 230V
Specifications
Key Specifications
- Fuel TypeElectric
- Voltage230
Dimensions and Measurements
CFM | 22 |
Height | 29 in. |
Length | 38 in. |
Product Weight | 406 lbs. |
Width | 23 in. |
Dimensions and Measurements
CFM | 22 |
Height | 29 in. |
Length | 38 in. |
Product Weight | 406 lbs. |
Width | 23 in. |
Included Components
Filter Included | Yes |
Included Components
Filter Included | Yes |
Characteristics and Features
Air Outlet Size | 3/4" |
CFM Rated @ | 150 PSI |
Lubrication Type | Oil Lubricated |
Maximum Ambient Temperature | 104 °F |
Mounting Type | Stationary |
Non-Cycling | Yes |
Oil Sight Glass Included | Yes |
Pressure Gauge Included | Yes |
Pressure Regulator Included | Yes |
Pump Low Oil Shutdown | Yes |
Tank Type | Tankless |
Characteristics and Features
Air Outlet Size | 3/4" |
CFM Rated @ | 150 PSI |
Lubrication Type | Oil Lubricated |
Maximum Ambient Temperature | 104 °F |
Mounting Type | Stationary |
Non-Cycling | Yes |
Oil Sight Glass Included | Yes |
Pressure Gauge Included | Yes |
Pressure Regulator Included | Yes |
Pump Low Oil Shutdown | Yes |
Tank Type | Tankless |
Electrical and Operational Information
Amperage | 7.03 |
Decibel Rating (dB) | 71 0 |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Horsepower | 7.5 |
Maximum Operating Pressure (PSI) | 150 |
Speeds | Fixed Speed |
Stages | Single Stage |
Voltage | 230 |
Electrical and Operational Information
Amperage | 7.03 |
Decibel Rating (dB) | 71 0 |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Horsepower | 7.5 |
Maximum Operating Pressure (PSI) | 150 |
Speeds | Fixed Speed |
Stages | Single Stage |
Voltage | 230 |
Warranty and Product Information
Certifications | UL |
Manufacturer Warranty | 1 Year |
Warranty and Product Information
Certifications | UL |
Manufacturer Warranty | 1 Year |
