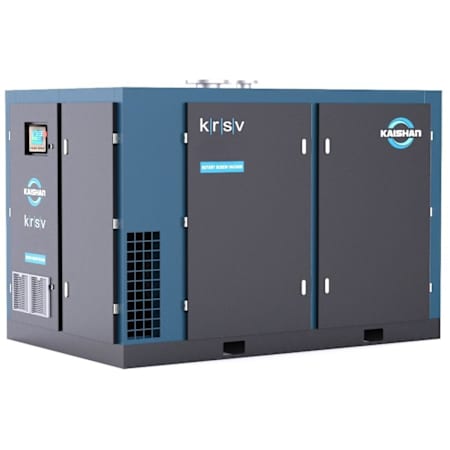

Kaishan 10 HP 29.9 Max PSI Stationary Electric (460 Volt 3 Phase) Variable Speed Vacuum Pump Tankless Rotary Air Compressor

Product Information:

• KRSV Industrial Rotary Screw Variable Speed Vacuum Pump
  • Highly reliable, world-class efficiency, and big cost savings
  • Ideal for medical, woodworking, food/beverage, printing & many more applications


• Rotary Screw Positive Displacement Vacuum Pump Technology
  • Creates vacuum by drawing air or gas from the chamber
  • Discharging back into the atmosphere through intermeshing rotary screws
  • Continuous process flow moves gas at a constant speed for stability


• High-Efficiency TEFC (IP54) Electric Direct Drive Motor w/ Variable Speed
  • Long operating life, lower power, and major cost savings
  • Operates efficiently by matching flow to demand while maintaining pressure control
  • Direct-drive vacuum motor couples directly to vacuum driveshaft powers vacuum airend


• Performance Data - 15 to 29.9 Inlet Pressure HgV (See Flow Chart)
  • 15 PSI, 2640 Max RPM, 184 CFM, 8.2 Input Power KW
  • 27 PSI, 3325 Max RPM, 282 CFM, 7.4 Input Power KW
  • 29.9 PSI, 3580 Max RPM, 86 CFM, 7.3 Input Power KW


• MAM-6090 Digital Smart Control Panel
  • Protects in the event of a fault and alerts with built-in alarms
  • Large display screen with icon touch display monitors & controls key functions


• Premium SKYv Series Air End & Variable Discharge Port
  • Asymmetric 5/6 rotor profile and precision ground rotor machining
  • 100% SKF bearing for longer life expectancy averaging 100,000 hours
  • Achieves maximum efficiency by adjusting internal compression ratio


• Heavy-Duty Low Sound Enclosure
  • Ensures quiet operation, easy access for serviceability, and advanced electricals
  • 316 stainless steel control tubing and brass fittings or longer life & less downtime


• Reliable System Operation
  • High-efficiency intake filter captures dust without impeding airflow
  • Laminar flow inlet valve for minimum pressure drop and increased output
  • Cast aluminum oil cooler increases life expectancy in harsh environments


• 3-Stage Tangential Oil Separation
  • Residual oil carryover limited to 3 PPM
  • Lower particle contact results in lower pressure drop and energy
  • Optimized mechanical pre-separation, reduced direct oil impingement on element


• Limited Manufacturer Warranty: Air End, Main Motor, Motor, Major Components - 5 Years & Entire Package - 1 Year

Specifications:

• Fuel Type: Electric
• Height: 44"
• Width: 42"
• Length: 66"
• Product Weight: 2138 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Filter Included

Tank Specifications:

• Tank Outlet Size: 2-1/2"

Pump Specifications:

• Oil System Type: Splash Lubricated
• Lubrication Type: Oil Lubricated
• CFM: 286
• Drive Type: Direct Drive

Engine and Motor Specifications:

• Horsepower: 10 HP
• Amperage: 16.2A
• dB Rating: 68
• Voltage: 460V

After your air compressor ships, a certified third party service provider will contact you to schedule commissioning of your unit. This commissioning service is provided at no cost to you and helps ensure your compressor is properly installed, configured, and operating according to manufacturer specifications. Commissioning is highly recommended, as failure to complete this step may result in limited or voided warranty coverage. Please reach out to FergusonHome if your unit delivers and no one has contacted you yet about commissioning service.
