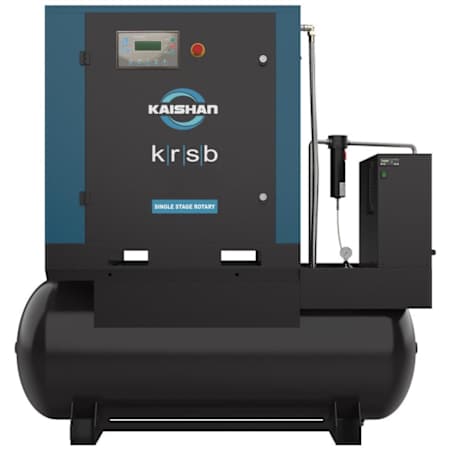

Kaishan 7.5 HP 120 Gal 135 Max PSI Stationary Electric (230 Volt 3 Phase) Rotary Air Compressor with Dryer

Product Information:

• KRSB Belt-Drive Series Rotary Screw System w/ 120-Gallon Tank & Dryer
  • Advanced belt-drive system reduces energy loss & increases bearing life
  • Power air tools for manufacturing, automotive repair centers, or industrial applications


• High-Efficiency TEFC (IP54) Electric Motor
  • Long operating life and lower power use
  • IEC frame, class F insulation & IE3 premium efficiency


• MAM-200 Digital Control Panel
  • Monitors, controls key functions & alerts issues with built-in alarms
  • External monitoring via RS 485 interface and programmed maintenance schedules


• Premium SKK Series Air End & Discharge Bearings
  • Delivers maximum output with less energy usage
  • Asymmetric 5/6 rotor profile and precision ground rotor machining
  • SFK bearing absorbs radial and axial loads for longer life and quieter operation


• Heavy-Duty Low Sound Enclosure
  • Ensures quiet operation and easy access for serviceability
  • 316 stainless steel control tubing for lower service costs & less downtime


• Reliable System Operation
  • Automatic belt tensioner for longer belt life
  • Integrated aftercoolers and cooling fans for high ambient temperatures
  • Laminar flow inlet valve increases output and minimizes pressure drop


• Large Cyclonic Air Intake Filtration & Spin-On Air Filter/Oil Separator
  • High-level contaminate removal, captures dust without impeding airflow
  • Easy maintenance with spin-on air filter/oil separator; 3 PPM carryover (5-30HP Only)


• Integrated Air Dryer & Pre-Filter
  • Keeps water, oil, and dirt out of compressed air; prolongs machinery & tool life
  • Includes built-in auto drain and high efficiency 0.01 micron coalescing pre-filter


• Limited Manufacturer Warranty (Below 150 PSI): Air End, Main Motor, Major Components - 5 Years & Entire Package - 1 Year

Specifications:

• Certifications: ASME
• Fuel Type: Electric
• Height: 65"
• Width: 24"
• Length: 68"
• Product Weight: 727 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Air Dryer Included
• Pressure Gauge Included
• Filter Included

Tank Specifications:

• Tank Outlet Size: 1/2"
• Tank Size: 120

Pump Specifications:

• After Cooler Included
• Lubrication Type: Oil Lubricated
• CFM: 24
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 7.5 HP
• Amperage: 21.5A
• dB Rating: 70
• Voltage: 230V
