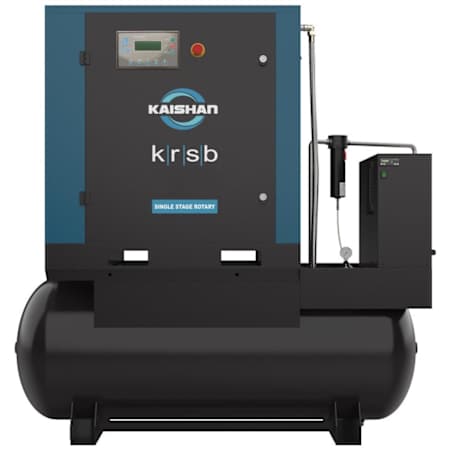

Kaishan 25 HP 120 Gal 135 Max PSI Stationary Electric (460 Volt 3 Phase) Rotary Air Compressor with Dryer

Product Information:

• KRSB Belt-Drive Series Rotary Screw System w/ 120-Gallon Tank & Dryer
  • Advanced belt-drive system reduces energy loss & increases bearing life
  • Power air tools for manufacturing, automotive repair centers, or industrial applications


• High-Efficiency TEFC (IP54) Electric Motor
  • Long operating life and lower power use
  • IEC frame, class F insulation & IE3 premium efficiency


• WYE Delta Starter (10-50 HP Units Only) : Provides reduced energy demand and amp draw on start-up


• MAM-200 Digital Control Panel
  • Monitors, controls key functions & alerts issues with built-in alarms
  • External monitoring via RS 485 interface and programmed maintenance schedules


• Premium SKK Series Air End & Discharge Bearings
  • Delivers maximum output with less energy usage
  • Asymmetric 5/6 rotor profile and precision ground rotor machining
  • SFK bearing absorbs radial and axial loads for longer life and quieter operation


• Heavy-Duty Low Sound Enclosure
  • Ensures quiet operation and easy access for serviceability
  • 316 stainless steel control tubing for lower service costs & less downtime


• Reliable System Operation
  • Automatic belt tensioner for longer belt life
  • Integrated aftercoolers and cooling fans for high ambient temperatures
  • Laminar flow inlet valve increases output and minimizes pressure drop


• Large Cyclonic Air Intake Filtration & Spin-On Air Filter/Oil Separator
  • High-level contaminate removal, captures dust without impeding airflow
  • Easy maintenance with spin-on air filter/oil separator; 3 PPM carryover (5-30HP Only)


• Integrated Air Dryer & Pre-Filter
  • Keeps water, oil, and dirt out of compressed air; prolongs machinery & tool life
  • Includes built-in auto drain and high efficiency 0.01 micron coalescing pre-filter


• Limited Manufacturer Warranty (Below 150 PSI): Air End, Main Motor, Major Components - 5 Years & Entire Package - 1 Year

Specifications:

• Certifications: ASME
• Fuel Type: Electric
• Height: 77"
• Width: 31"
• Length: 71"
• Product Weight: 1402 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Air Dryer Included
• Pressure Gauge Included
• Filter Included

Tank Specifications:

• Tank Outlet Size: 1"
• Tank Size: 120

Pump Specifications:

• After Cooler Included
• Lubrication Type: Oil Lubricated
• CFM: 105
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 25 HP
• Amperage: 36A
• dB Rating: 73
• Voltage: 460V

After your air compressor ships, a certified third party service provider will contact you to schedule commissioning of your unit. This commissioning service is provided at no cost to you and helps ensure your compressor is properly installed, configured, and operating according to manufacturer specifications. Commissioning is highly recommended, as failure to complete this step may result in limited or voided warranty coverage. Please reach out to FergusonHome if your unit delivers and no one has contacted you yet about commissioning service.
