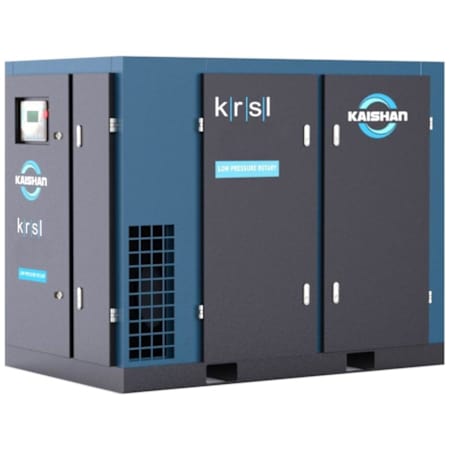

Kaishan 200 HP 45 Max PSI Stationary Electric (460 Volt 3 Phase) Tankless Rotary Air Compressor

Product Information:

• KRSL Low-Pressure Rotary Screw System: Effectively handle applications ranging from 25 to 45 PSI


• High-Efficiency TEFC (IP54) Electric Motor w/ WYE Delta Starter
  • IEC frame, class F insulation. and IE3 premium efficiency
  • Long operating life, lower power use & reduced in-rush current


• Direct-Drive 1:1 Drive Ratio (No Gearbox)
  • Large, slow-running air end eliminates transmission energy loss
  • Increases bearing life and flexible, easily removable coupling element


• MAM-200 Digital Control Panel
  • Monitors, controls key functions & alerts issues with built-in alarms
  • External monitoring via RS 485 interface and can sync up to 16 compressors


• Premium SKYv Series Air End & Discharge Bearings
  • Handles increased load-carrying capacity
  • Asymmetric 5/6 rotor profile and precision ground rotor machining
  • SFK bearing absorbs radial and axial loads for longer life and quieter operation


• Variable Discharge Port
  • Pressure flexibility between 24 to 45 PSI and minimizes power consumption
  • Optimizes energy efficiency by adjusting internal compression ratio to match demand


• Heavy-Duty Sound Deadening Enclosure
  • Ensures quiet operation and easy access for serviceability
  • 316 stainless steel control tubing for lower service costs & less downtime


• Reliable System Operation
  • High-efficiency intake filter captures dust without impeding airflow
  • Modulating inlet valve increases output and minimizes pressure drop
  • Integrated aftercoolers and cooling fans for high ambient temperatures


• 3-Stage Tangential Oil Separation
  • Residual oil carryover limited to 3 PPM
  • Lower particle contact results in lower pressure drop and energy
  • Optimized mechanical pre-separation, reduced direct oil impingement on element


• Limited Manufacturer Warranty: Air End Main Motor, Motor, Major Components - 5 Years & Entire Package - 1 Year

Specifications:

• Fuel Type: Electric
• Height: 88"
• Width: 81"
• Length: 157"
• Product Weight: 13051 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Filter Included

Tank Specifications:

• Tank Outlet Size: 5"

Pump Specifications:

• After Cooler Included
• Oil System Type: Splash Lubricated
• Lubrication Type: Oil Lubricated
• CFM: 2,050
• Drive Type: Direct Drive

Engine and Motor Specifications:

• Horsepower: 200 HP
• Amperage: 293A
• dB Rating: 76
• Voltage: 460V
