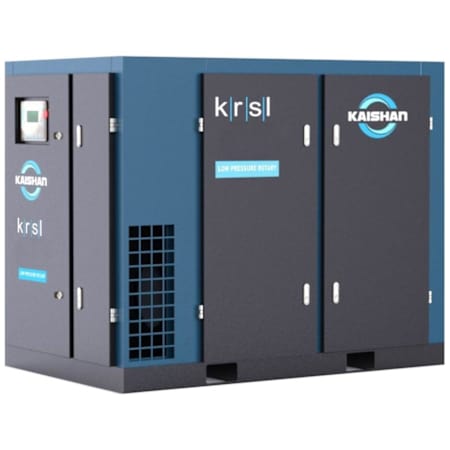

Kaishan 60 HP 45 Max PSI Stationary Electric (230 Volt 3 Phase) Tankless Rotary Air Compressor

Product Information:

• KRSL Low-Pressure Rotary Screw System: Effectively handle applications ranging from 25 to 45 PSI


• High-Efficiency TEFC (IP54) Electric Motor w/ WYE Delta Starter
  • IEC frame, class F insulation. and IE3 premium efficiency
  • Long operating life, lower power use & reduced in-rush current


• Direct-Drive 1:1 Drive Ratio (No Gearbox)
  • Large, slow-running air end eliminates transmission energy loss
  • Increases bearing life and flexible, easily removable coupling element


• MAM-200 Digital Control Panel
  • Monitors, controls key functions & alerts issues with built-in alarms
  • External monitoring via RS 485 interface and can sync up to 16 compressors


• Premium SKYv Series Air End & Discharge Bearings
  • Handles increased load-carrying capacity
  • Asymmetric 5/6 rotor profile and precision ground rotor machining
  • SFK bearing absorbs radial and axial loads for longer life and quieter operation


• Variable Discharge Port
  • Pressure flexibility between 24 to 45 PSI and minimizes power consumption
  • Optimizes energy efficiency by adjusting internal compression ratio to match demand


• Heavy-Duty Sound Deadening Enclosure
  • Ensures quiet operation and easy access for serviceability
  • 316 stainless steel control tubing for lower service costs & less downtime


• Reliable System Operation
  • High-efficiency intake filter captures dust without impeding airflow
  • Modulating inlet valve increases output and minimizes pressure drop
  • Integrated aftercoolers and cooling fans for high ambient temperatures


• 3-Stage Tangential Oil Separation
  • Residual oil carryover limited to 3 PPM
  • Lower particle contact results in lower pressure drop and energy
  • Optimized mechanical pre-separation, reduced direct oil impingement on element


• Limited Manufacturer Warranty: Air End Main Motor, Motor, Major Components - 5 Years & Entire Package - 1 Year

Specifications:

• Fuel Type: Electric
• Height: 64"
• Width: 53"
• Length: 90"
• Product Weight: 3975 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Filter Included

Tank Specifications:

• Tank Outlet Size: 2-1/2"

Pump Specifications:

• After Cooler Included
• Oil System Type: Splash Lubricated
• Lubrication Type: Oil Lubricated
• CFM: 523
• Drive Type: Direct Drive

Engine and Motor Specifications:

• Horsepower: 60 HP
• Amperage: 164A
• dB Rating: 72
• Voltage: 230V

After your air compressor ships, a certified third party service provider will contact you to schedule commissioning of your unit. This commissioning service is provided at no cost to you and helps ensure your compressor is properly installed, configured, and operating according to manufacturer specifications. Commissioning is highly recommended, as failure to complete this step may result in limited or voided warranty coverage. Please reach out to FergusonHome if your unit delivers and no one has contacted you yet about commissioning service.
