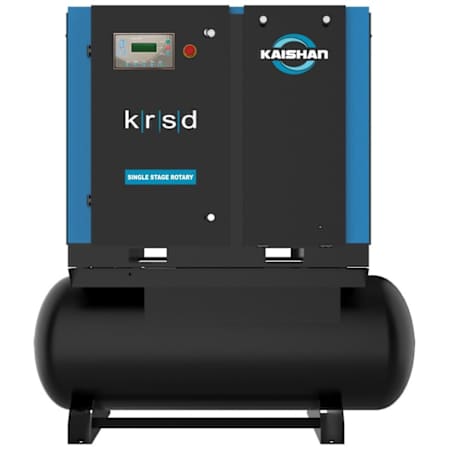

Kaishan 20 HP 120 Gal 125 Max PSI Stationary Electric (460 Volt 3 Phase) Direct Drive Rotary Air Compressor

Product Information:

• KRSD Direct-Drive Series Fixed Speed Rotary Screw System
  • Maximizes air output and reduces energy
  • Power tools for manufacturing, automotive repair centers, or industrial applications


• High-Efficiency TEFC (IP54) Electric Motor w/ WYE Delta Starter
  • IEC frame, class F insulation, and IE3 premium efficiency
  • Long operating life, lower power use & reduced in-rush current


• Direct-Drive 1:1 Drive Ratio (No Gearbox)
  • Large, slow running air end eliminates transmission energy loss
  • Increases bearing life and flexible, easily removable coupling element


• MAM-200 Digital Control Panel
  • Monitors and controls key compressor functions
  • Protects in the event of a fault and alerts with built-in alarms
  • External monitoring via RS 485 interface and programmed maintenance schedules


• Premium SKK Series Air End & Discharge Bearings
  • Delivers maximum output with less energy usage
  • Asymmetric 5/6 rotor profile and precision ground rotor machining
  • SFK bearing absorbs radial and axial loads for longer life and quieter operation


• Heavy-Duty Low Sound Enclosure
  • Ensures quiet operation and easy access for serviceability
  • Industrial grade electrical UL Approved for outstanding reliability
  • 316 stainless steel control tubing for lower service costs & less downtime


• Reliable System Operation
  • High-efficiency air intake filters capture dust without impeding airflow
  • Single-pass oil, integrated aftercoolers & axial cooling fans reduce heat
  • Modulating inlet valve increases output and minimizes pressure drop


• 3-Stage Tangential Oil Separation
  • Residual oil carryover limited to 3 PPM
  • Lower particle contact results in lower pressure drop and energy
  • Optimized mechanical pre-separation, reduced direct oil impingement on element


• Limited Manufacturer Warranty (Below 150 PSI): Air End - 10 Years, Main Motor / Major Components - 5 Years & Entire Package - 1 Year

Specifications:

• Fuel Type: Electric
• Height: 77"
• Width: 31"
• Length: 68"
• Product Weight: 1223 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Filter Included

Tank Specifications:

• Tank Outlet Size: 1"
• Tank Size: 120

Pump Specifications:

• After Cooler Included
• Lubrication Type: Oil Lubricated
• CFM: 74
• Drive Type: Direct Drive

Engine and Motor Specifications:

• Horsepower: 20 HP
• Amperage: 24A
• dB Rating: 72
• Voltage: 460V
