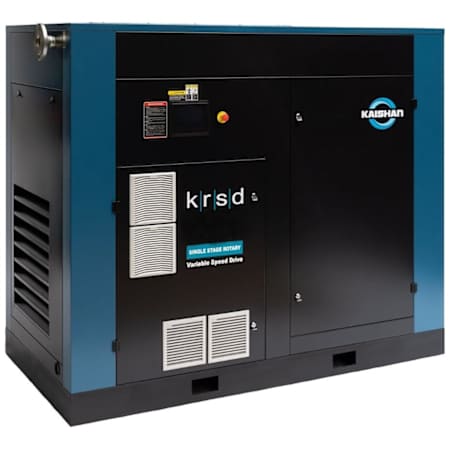

Kaishan 125 HP 125 Max PSI Stationary Electric (460 Volt 3 Phase) Variable Speed Direct Drive Tankless Rotary Air Compressor

Product Information:

• KRSD Direct-Drive Series Variable Speed Rotary Screw System
  • Maximizes air output and reduces energy
  • Power tools for manufacturing, automotive repair centers, or industrial applications


• High-Efficiency TEFC (IP54) Electric Motor
  • IEC frame, class F insulation, and IE3 premium efficiency
  • Long operating life, lower power use & reduced in-rush current


• Direct-Drive 1:1 Drive Ratio (No Gearbox)
  • Large, slow running air end eliminates transmission energy loss
  • Increases bearing life and flexible, easily removable coupling element


• Variable Speed
  • Major cost savings as high as 40% are possible; Eliminates wasted energy
  • Operates efficiently by matching flow to demand while maintaining high pressure control


• MAM-6090 Digital Smart Control Panel
  • Protects in the event of a fault and alerts with built-in alarms
  • Large display screen with icon touch display monitors & controls key functions


• Premium SKK Series Air End & Discharge Bearings
  • Delivers maximum output with less energy usage
  • Asymmetric 5/6 rotor profile and precision ground rotor machining
  • SFK bearing absorbs radial and axial loads for longer life and quieter operation


• Heavy-Duty Low Sound Enclosure
  • Ensures quiet operation and easy access for serviceability
  • Industrial grade electrical UL Approved for outstanding reliability
  • 316 stainless steel control tubing for lower service costs & less downtime


• Reliable System Operation
  • High-efficiency air intake filters capture dust without impeding airflow
  • Single-pass oil, integrated aftercoolers & axial cooling fans reduce heat
  • Modulating inlet valve increases output and minimizes pressure drop


• 3-Stage Tangential Oil Separation
  • Residual oil carryover limited to 3 PPM
  • Lower particle contact results in lower pressure drop and energy
  • Optimized mechanical pre-separation, reduced direct oil impingement on element


• Limited Manufacturer Warranty (Below 150 PSI): Air End - 10 Years, Main Motor / Major Components - 5 Years & Entire Package - 1 Year

Specifications:

• Fuel Type: Electric
• Height: 65"
• Width: 52"
• Length: 93"
• Product Weight: 4498 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Filter Included

Tank Specifications:

• Tank Outlet Size: 3"

Pump Specifications:

• After Cooler Included
• Lubrication Type: Oil Lubricated
• CFM: 593
• Drive Type: Direct Drive

Engine and Motor Specifications:

• Horsepower: 125 HP
• Amperage: 161A
• dB Rating: 77
• Voltage: 460V

After your air compressor ships, a certified third party service provider will contact you to schedule commissioning of your unit. This commissioning service is provided at no cost to you and helps ensure your compressor is properly installed, configured, and operating according to manufacturer specifications. Commissioning is highly recommended, as failure to complete this step may result in limited or voided warranty coverage. Please reach out to FergusonHome if your unit delivers and no one has contacted you yet about commissioning service.
