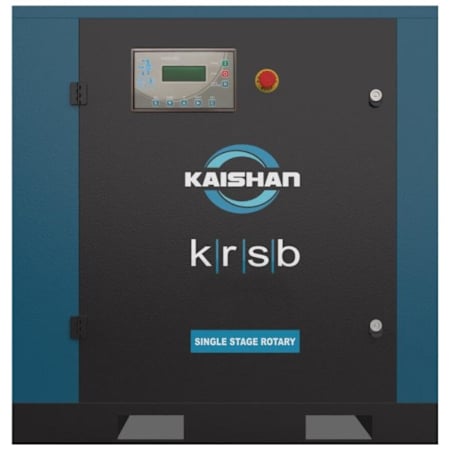

Kaishan 25 HP 185 Max PSI Stationary Electric (460 Volt 3 Phase) Tankless Rotary Air Compressor

Product Information:

• KRSB Belt-Drive Series Rotary Screw System
  • Advanced belt-drive system reduces energy loss & increases bearing life
  • Power air tools for manufacturing, automotive repair centers, or industrial applications


• High-Efficiency TEFC (IP54) Electric Motor
  • Long operating life and lower power use
  • IEC frame, class F insulation & IE3 premium efficiency


• WYE Delta Starter (10-50 HP Units Only) : Provides reduced energy demand and amp draw on start-up


• MAM-200 Digital Control Panel
  • Monitors, controls key functions & alerts issues with built-in alarms
  • External monitoring via RS 485 interface and programmed maintenance schedules


• Premium SKK Series Air End & Discharge Bearings
  • Delivers maximum output with less energy usage
  • Asymmetric 5/6 rotor profile and precision ground rotor machining
  • SFK bearing absorbs radial and axial loads for longer life and quieter operation


• Heavy-Duty Low Sound Enclosure
  • Ensures quiet operation and easy access for serviceability
  • 316 stainless steel control tubing for lower service costs & less downtime


• Reliable System Operation
  • Automatic belt tensioner for longer belt life
  • Integrated aftercoolers and cooling fans for high ambient temperatures
  • Laminar flow inlet valve increases output and minimizes pressure drop


• Large Cyclonic Air Intake Filtration & Spin-On Air Filter/Oil Separator
  • High-level contaminate removal, captures dust without impeding airflow
  • Easy maintenance with spin-on air filter/oil separator; 3 PPM carryover (5-30HP Only)


• Limited Manufacturer Warranty (Above 150 PSI): Air End - 2 Years & Main Motor, Major Components, Entire Package - 1 Year

Specifications:

• Fuel Type: Electric
• Height: 48"
• Width: 29"
• Length: 44"
• Product Weight: 1102 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Filter Included

Tank Specifications:

• Tank Outlet Size: 1"

Pump Specifications:

• After Cooler Included
• Lubrication Type: Oil Lubricated
• CFM: 61
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 25 HP
• Amperage: 36.1A
• dB Rating: 73
• Voltage: 460V
