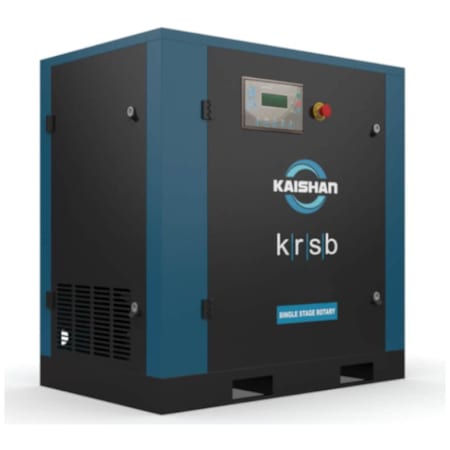

Kaishan 5 HP 135 Max PSI Stationary Electric (230 Volt 1 Phase) Tankless Rotary Air Compressor
Model: KRSB-005A2F0S8U|Item: bci5115990
$5,499.00
20 In Stock
Details
Product Information:
- KRSB Belt-Drive Series Rotary Screw System
- Advanced belt-drive system reduces energy loss & increases bearing life
- Power air tools for manufacturing, automotive repair centers, or industrial applications
- High-Efficiency TEFC (IP54) Electric Motor
- Long operating life and lower power use
- IEC frame, class F insulation & IE3 premium efficiency
- MAM-200 Digital Control Panel
- Monitors, controls key functions & alerts issues with built-in alarms
- External monitoring via RS 485 interface and programmed maintenance schedules
- Premium SKK Series Air End & Discharge Bearings
- Delivers maximum output with less energy usage
- Asymmetric 5/6 rotor profile and precision ground rotor machining
- SFK bearing absorbs radial and axial loads for longer life and quieter operation
- Heavy-Duty Low Sound Enclosure
- Ensures quiet operation and easy access for serviceability
- 316 stainless steel control tubing for lower service costs & less downtime
- Reliable System Operation
- Automatic belt tensioner for longer belt life
- Integrated aftercoolers and cooling fans for high ambient temperatures
- Laminar flow inlet valve increases output and minimizes pressure drop
- Large Cyclonic Air Intake Filtration & Spin-On Air Filter/Oil Separator
- High-level contaminate removal, captures dust without impeding airflow
- Easy maintenance with spin-on air filter/oil separator; 3 PPM carryover (5-30HP Only)
- Limited Manufacturer Warranty (Below 150 PSI): Air End, Main Motor, Major Components - 5 Years & Entire Package - 1 Year
Specifications:
- Fuel Type: Electric
- Height: 37"
- Width: 21"
- Length: 33"
- Product Weight: 485 lbs
- Warranty: 1 Year Commercial and 1 Year Residential
Included Accessories:
- Filter Included
Tank Specifications:
- Tank Outlet Size: 3/4"
Pump Specifications:
- After Cooler Included
- Lubrication Type: Oil Lubricated
- CFM: 16
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 5 HP
- Amperage: 23.3A
- dB Rating: 70
- Voltage: 230V
Dimensions and Measurements
CFM | 16.3 |
Height | 37 in. |
Length | 33 in. |
Product Weight | 485 lbs. |
Width | 21 in. |
Dimensions and Measurements
CFM | 16.3 |
Height | 37 in. |
Length | 33 in. |
Product Weight | 485 lbs. |
Width | 21 in. |
Included Components
Filter Included | Yes |
Included Components
Filter Included | Yes |
Characteristics and Features
After Cooler Included | Yes |
Air Dryer Included | No |
CFM Rated @ | 125 PSI |
Duty Cycle | 100 % |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Pressure Gauge Included | No |
Tank Outlet Size | 3/4" |
Tank Type | Tankless |
Characteristics and Features
After Cooler Included | Yes |
Air Dryer Included | No |
CFM Rated @ | 125 PSI |
Duty Cycle | 100 % |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Pressure Gauge Included | No |
Tank Outlet Size | 3/4" |
Tank Type | Tankless |
Electrical and Operational Information
Amperage | 23.3 |
Decibels | 70 |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 135 |
Stages | Single-Stage |
Voltage | 230 |
Electrical and Operational Information
Amperage | 23.3 |
Decibels | 70 |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 135 |
Stages | Single-Stage |
Voltage | 230 |
Warranty and Product Information
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
Warranty and Product Information
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
