The JennAir JED4430KB has been discontinued

** See similar or replacement items below **

JennAir
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Item # bci4484991

JennAir 30 Inch Wide 4 Burner Electric Cooktop with Dual Choice Element

Model: JED4430KB
|
Item: bci4484991

Discontinued

We still have product details and accessories, scroll down to see them!

Discontinued

We still have product details and accessories, scroll down to see them!

Details

This industry exclusive tap touch radiant downdraft cooktop offers a sleek design and responsive performance. Its glass touch controls and four radiant elements create a smooth, integrated cooktop surface, and the impressive JX3™ downdraft ventilation system quickly helps clear the air without a hood.

Features:

  • Striking and inviting controls with LED lighting unleash performance at your touch

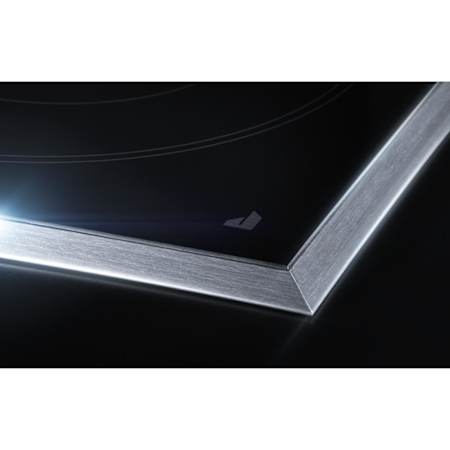

  • Sleek black glass with a beveled edge that seizes its surroundings
  • Standing semi-flush at 3mm above the countertop, this precision edge is minimalism magnified
  • Provides exceptional ventilation performance built into an attractive design by capturing cooking vapors through a thin slot and speeding the air, all while maintaining quiet operation
  • Heating elements sealed underneath a ceramic glass cooking surface that offers up to 1,200 to 1,300 watts of power

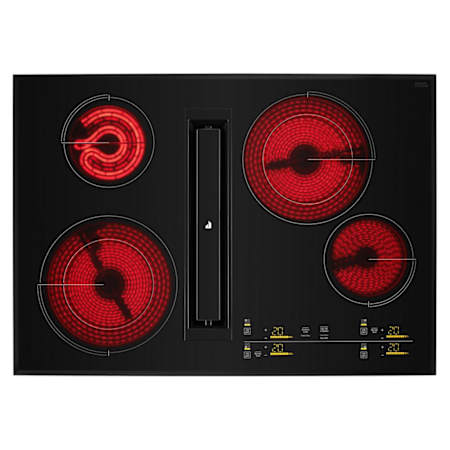

  • Waiting expectantly beneath the stillness of obsidian black glass, electric elements are coiled to deliver heat upon command
  • Light(s) positioned at the controls instantly show which element is still hot – even if the element has been turned off
  • A single centrifugal blower motor combines with a perimetric design, allowing this ventilation system to operate at just 297 CFM Motor Class
  • Covered under a 5 year limited manufacturer warranty

Product Technologies:

  • JX3™ Downdraft Ventilation System with 3 Speeds: Developed and refined by JennAir®, this downdraft ventilation system uses proximity ventilation that helps capture smoke, steam and odors at the cooking surface, whisking them down and out for a fresh, clean kitchen. It has been designed to provide optimal cooking performance, relying on a vertically mounted, 297 CFM Motor Class blower system.
  • 10"/6" Dual-Choice™ Element: An electric element that features two element sizes at one position and has a maximum heat output of up to 3,000 watts for greater cooking flexibility.
  • 9"/6" Dual-Choice™ Element: An electric element that features two element sizes at one position for greater cooking flexibility.
Additional JennAir Links

Dimensions and Measurements

Depth
22.06 in.
Height
3.66 in.
Nominal Depth
23 in.
Nominal Height
4 in.
Nominal Width
30 in.
Product Weight
65 lbs.
Width
30.88 in.

Dimensions and Measurements

Depth
22.06 in.
Height
3.66 in.
Nominal Depth
23 in.
Nominal Height
4 in.
Nominal Width
30 in.
Product Weight
65 lbs.
Width
30.88 in.

Characteristics and Features

Burner Style
Radiant
Control Type
Touch
Downdraft Ventilated
Yes
Hot Surface Indicator Lights
Yes
Installation Type
Built-In
LP Conversion
No
Material
Ceramic Glass
Number Of Burners
4

Characteristics and Features

Burner Style
Radiant
Control Type
Touch
Downdraft Ventilated
Yes
Hot Surface Indicator Lights
Yes
Installation Type
Built-In
LP Conversion
No
Material
Ceramic Glass
Number Of Burners
4

Electrical and Operational Information

Amperage
40
Back Left Burner Watts
1300
Back Right Burner Watts
1400, 3000
Front Left Burner Watts
1400, 3000
Front Right Burner Watts
1200
Fuel Type
Electric
Induction
No
Power Burner
No
Voltage
220

Electrical and Operational Information

Amperage
40
Back Left Burner Watts
1300
Back Right Burner Watts
1400, 3000
Front Left Burner Watts
1400, 3000
Front Right Burner Watts
1200
Fuel Type
Electric
Induction
No
Power Burner
No
Voltage
220

Warranty and Product Information

ADA
Yes
Country Of Origin
USA
Made in America
Yes
Manufacturer Warranty
5 Year Limited

Warranty and Product Information

ADA
Yes
Country Of Origin
USA
Made in America
Yes
Manufacturer Warranty
5 Year Limited
