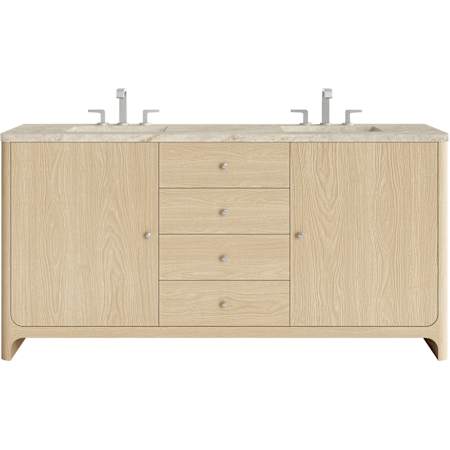

James Martin Vanities Gracyn 72" Free Standing Double Basin Ash Wood Vanity Set with Solid Surface Top, Rectangular Sinks, USB Port(s), and Electrical Outlet(s)
Model: D125-V72-CSD-WTJR|Item: bci5233671
Details
The Gracyn 72" Double Vanity by James Martin Vanities is a tactile and visual delight, boasting soft curves and a fresh finish that brings character to your space. The sand-blasted finish on natural Ash gives textural and visual definition to the wood grain, truly bringing this piece to life. Featuring two integrated USB/120V power units and smooth radius edges, the Gracyn is complemented by elegant Satin Nickel hardware. The two single-door cabinet features ample storage with four full-extension drawers, interior shelving, and two internal drawers. The addition of a radius-cut corner top in Tajnar Eclos with undermount sink completes the look.
Included Components:
- Covered under James Martin Vanities' 1 Year Limited warranty
- Ash vanity cabinet with 2 doors and 6 drawers
- Solid surface double basin vanity top with rectangular porcelain sinks
Cabinet Features:
- Constructed from ash
- Cabinet bottoms, sides, and shelves are constructed from 1/2" (13mm) thick multi-layered plywood with stain-grade wood veneers
- Free standing installation – vanity is seated on the floor with wall anchors
- Double door design provides easy access to storage space
- 6 full extension drawers with soft-close slides allows for organized storage
- Soft close drawer slides operate on smooth ball-bearings and prevent drawers from slamming shut
- Drawer boxes are crafted with classic English dovetail joinery for strength and durability
- Vertical supports and corner brackets reinforce the strength of the cabinet and distributes weight of the countertop
- Cabinet ships with a full back panel to allow for variable plumbing locations
- Cabinet interiors and exteriors are sealed with moisture and UV resistant finishes
- Vanity cabinet includes matching decorative hardware
- Vanity will ship fully assembled
Vanity Top Features:
- Solid surface vanity top includes rectangular porcelain sinks
- Solid surface vanity tops are an acrylic-based material composed of minerals, resins, and pigments to create a nonporous and easy to maintain surface
- Solid surface requires no sealing and resists heat and staining from most liquids and household cleaning products
- 3 pre-drilled faucet holes (per basin)
- Sink does not include an overflow
Cabinet Specifications:
- Cabinet Width: 72" (left to right)
- Cabinet Height: 35-15/16" (top to bottom)
- Cabinet Depth: 23-1/2" (front to back)
- Number of Doors: 2
- Number of Drawers: 6
- Number of Shelves: 0
Vanity Top Specifications:
- Vanity Top Width: 72" (left edge to right edge)
- Vanity Top Depth: 23-1/2" (front edge to back edge)
- Number of Basins: 2
- Sink Measurements: 19-1/2" L X 14-3/8" W X 6-7/8" H
- Number of Faucet Holes: 3 per basin (6 Total)
- Faucet Centers: 8" (distance between the installation holes for the faucet handles)
- Drain Outlet Connection: 1-3/4"
Dimensions and Measurements
Basin Depth | 4.375 in. |
Basin Length | 17.125 in. |
Basin Width | 12 in. |
Depth | 23.5 in. |
Drain Connection | 1.75 in. |
Faucet Centers | 8 in. |
Height | 35.93 in. |
Nominal Height | 36 in. |
Nominal Width | 72 in. |
Product Weight | 347.16 lbs. |
Sink Height | 6.875 in. |
Sink Length | 19.5 in. |
Sink Width | 14.375 in. |
Width | 72 in. |
Dimensions and Measurements
Basin Depth | 4.375 in. |
Basin Length | 17.125 in. |
Basin Width | 12 in. |
Depth | 23.5 in. |
Drain Connection | 1.75 in. |
Faucet Centers | 8 in. |
Height | 35.93 in. |
Nominal Height | 36 in. |
Nominal Width | 72 in. |
Product Weight | 347.16 lbs. |
Sink Height | 6.875 in. |
Sink Length | 19.5 in. |
Sink Width | 14.375 in. |
Width | 72 in. |
Included Components
Backsplash Included | No |
Cabinet Hardware Included | Yes |
Drain Assembly Included | No |
Escutcheon Included | No |
Faucet Included | No |
Installation Hardware Included | Yes |
Light Included | No |
Medicine Cabinet Included | No |
Mirror Included | No |
Pop-Up Included | No |
Side Cabinet Included | No |
Sidesplash Included | No |
Sink Included | Yes |
USB Port | Yes |
Vanity Legs Included | Yes |
Vanity Top Included | Yes |
Included Components
Backsplash Included | No |
Cabinet Hardware Included | Yes |
Drain Assembly Included | No |
Escutcheon Included | No |
Faucet Included | No |
Installation Hardware Included | Yes |
Light Included | No |
Medicine Cabinet Included | No |
Mirror Included | No |
Pop-Up Included | No |
Side Cabinet Included | No |
Sidesplash Included | No |
Sink Included | Yes |
USB Port | Yes |
Vanity Legs Included | Yes |
Vanity Top Included | Yes |
Characteristics and Features
Assembly Required | No |
Cabinet Material | MDF |
Faucet Holes | 3 |
Faucet Installation Type | Deck Mounted |
Faucet Mounting Type | Widespread |
Finished Back | No |
Installation Type | Free Standing |
Made of Solid Wood | No |
Number Of Basins | 2 |
Number Of Doors | 2 |
Number Of Drawers | 6 |
Number Of Hidden Drawers | 0 |
Number Of Shelves | 0 |
Overflow | No |
Self Closing Slides | No |
Sink Material | Porcelain |
Sink Shape | Rectangular |
Soft Close Hinges | Yes |
Soft Close Slides | Yes |
Theme | Modern |
Vanity Top Material | Solid Surface |
Wood Species | Ash |
Characteristics and Features
Assembly Required | No |
Cabinet Material | MDF |
Faucet Holes | 3 |
Faucet Installation Type | Deck Mounted |
Faucet Mounting Type | Widespread |
Finished Back | No |
Installation Type | Free Standing |
Made of Solid Wood | No |
Number Of Basins | 2 |
Number Of Doors | 2 |
Number Of Drawers | 6 |
Number Of Hidden Drawers | 0 |
Number Of Shelves | 0 |
Overflow | No |
Self Closing Slides | No |
Sink Material | Porcelain |
Sink Shape | Rectangular |
Soft Close Hinges | Yes |
Soft Close Slides | Yes |
Theme | Modern |
Vanity Top Material | Solid Surface |
Wood Species | Ash |
Electrical and Operational Information
Electrical Outlet | Yes |
Electrical and Operational Information
Electrical Outlet | Yes |
Warranty and Product Information
ADA | No |
Approved for Commercial Use | No |
Collection | Gracyn |
Country Of Origin | Vietnam |
Low Lead Compliant | No |
Made in America | No |
Manufacturer Warranty | 1 Year Limited |
WaterSense Certified | No |
Warranty and Product Information
ADA | No |
Approved for Commercial Use | No |
Collection | Gracyn |
Country Of Origin | Vietnam |
Low Lead Compliant | No |
Made in America | No |
Manufacturer Warranty | 1 Year Limited |
WaterSense Certified | No |
