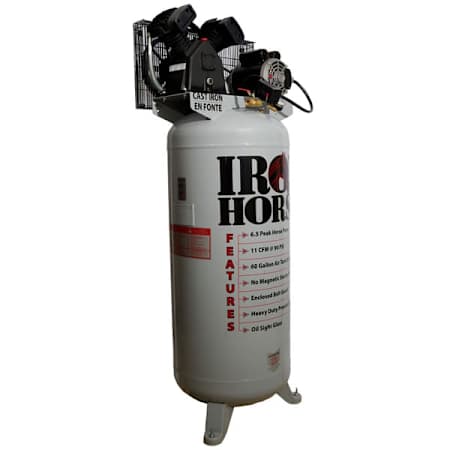

Iron Horse 3 HP 60 Gal 150 Max PSI 11.2 CFM Single-Stage Stationary Electric (208, 230 Volt 1 Phase) Reciprocating Air Compressor
Model: IHD6160V1|Item: bci5120929
$1,039.20
30 In Stock
Free Shipping on LTL freight orders over $1,499.00!
Leaves the Warehouse in 1 to 2 business days
-Details
Product Information:
- 3.2 Horsepower Electric Motor: Run a wide variety of tools; reaches 6.5 HP peak at startup
- Rugged 2 Cylinder Cast Iron Compressor: Extremely quiet and durable
- Individual And Removable Cylinders: Provides smoother & cooler operation, longer life
- No Magnetic Starter Required: Everything you need in one package
- Heavy Duty Pressure Switch: Easy, on/off control
- Thermally Protected 208/230 Volt Motor: Versatile single phase power fits many applications
- 60 Gallon ASME Registered Tank: Rated to 150 PSIG
- High Efficiency Reed Valves: Provide maximum performance
- Convenient To Maintain
- Easy view oil sight gauge
- Sturdy belt guard
Specifications:
- Certifications: ASME
- Fuel Type: Electric
- Height: 78"
- Width: 40"
- Length: 48"
- Product Weight: 263.5 lbs
- Warranty: 1 Year Commercial and 1 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 1/2"
- Tank Size: 60
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 11
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 3 HP
- Voltage: 208, 230V
- Voltage: 208, 230V
Dimensions and Measurements
CFM | 11.2 |
Height | 78 in. |
Length | 48 in. |
Product Weight | 263.5 lbs. |
Width | 40 in. |
Dimensions and Measurements
CFM | 11.2 |
Height | 78 in. |
Length | 48 in. |
Product Weight | 263.5 lbs. |
Width | 40 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | No |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/2" |
Tank Size | 60 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | No |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/2" |
Tank Size | 60 |
Tank Type | Hot Dog |
Electrical and Operational Information
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 3 |
Maximum Operating Pressure (PSI) | 150 |
Stages | Single-Stage |
Voltage | 208, 230 |
Electrical and Operational Information
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 3 |
Maximum Operating Pressure (PSI) | 150 |
Stages | Single-Stage |
Voltage | 208, 230 |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
