Iron Horse 12 HP 30 Gal 175 Max PSI Two-Stage Truck Mount Gas Reciprocating Air Compressor with Electric Start Briggs and Stratton Engine

Product Information:

• Truck Mounted 2 Stage Unit Produces 22 CFM @ 90 PSI
  • Designed for farm duty, hobbiest, and semi-pro jobs
  • Sturdy and reliable air pressure wherever you need it


• Durable 12-HP Commercial Grade Briggs & Stratton Engine
  • OHV provides more power, less fuel-use & lower emissions
  • Runs cooler for longer engine life
  • Electric and manual start for ease of operation (Battery & Cables Not Included)


• Engine Idle Control
  • Control and regulates the engine idle speed
  • Reduces operating costs & excessive wear


• Rugged 3 Cylinder Cast Iron Pump
  • High efficiency reed valves for maximum performance
  • Built to work hard and last a long time
  • Efficient heat removal from flywheel for cooler running


• Individual & Removable Cylinders
  • Provide smoother & cooler operation
  • Allows for easy maintenance


• "V" Style Design
  • Minimizes vibration, improves cooling, extends compressor life
  • Large bore pistons give the ability to run at less RPM


• Large Air Filters With Automotive Drop-In Style Elements: Extend compressor life, easy to maintain


• 30 Gallon ASME Tank
  • Rated to 200 PSI for safety; heavy duty 3/4" ball valve included
  • Convenient oil drain on front of unit
  • Sturdy metal belt guard protects the belt & the user


• Easy View Oil Sight Gauge
  • Monitor pump oil level at a glance
  • Simplifies maintenance



Specifications:

• Certifications: ASME
• Fuel Type: Gas

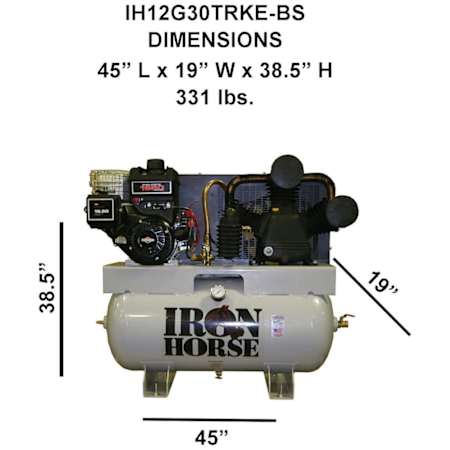

• Height: 38-1/2"
• Width: 19"
• Length: 45"
• Product Weight: 331 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Pressure Gauge Included

Tank Specifications:

• Tank Outlet Size: 3/4"
• Tank Size: 30

Pump Specifications:

• After Cooler Included
• Oil Sight Glass Included
• Oil System Type: Splash Lubricated
• Lubrication Type: Oil Lubricated
• CFM: 22
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Auto Idle Mode Included
• Briggs and Stratton
• Horsepower: 12 HP
