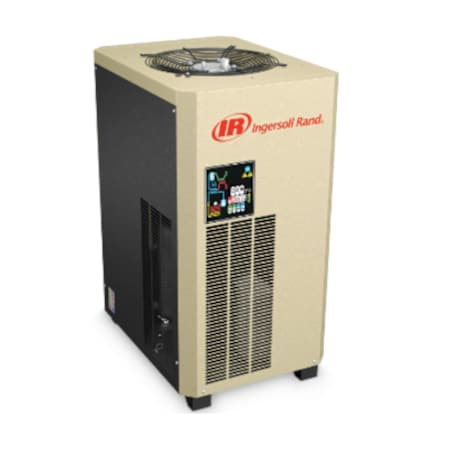

Ingersoll Rand Non-Cycling Refrigerated Air Dryer (100 CFM)

Product Information:

• For Use With Compressors With Aftercoolers: Keeps damp air from rusting tools & washing away lubricants


• ISO 7183 Dryer Is Reliable And Operationally Efficient
  • 100 CFM with exceptionally low pressure drop
  • Integral stainless steel moisture separation


• Continuous Pressure Class H Dew Point Performance
  • Optimized pressure 50°F dew point
  • Temperature driven variable speed fan for continuous heat removal
  • Electronic solenoid drain valve for optimal performance


• User Friendly Controls: Simple, easy to read control panel uses a color coded diagram


• Environmentally Friendly
  • Uses 115V, 1 phase, 11.8 amp power and R134A refrigerant
  • Sturdy, powder coated finish
  • Aluminum braze plate heat exchanger


• Professional Features
  • Maximum pressure of 200 PSI
  • Maximum inlet temperature of 120°F; maximum ambient temp 113°F
  • 3/4" NPT inlet & outlet fittings
  • Installation of an upstream 1.0 micron prefilter is recommended



Specifications:

• Warranty: 1 Year Commercial and 1 Year Residential
• Product Weight: 99 lbs
• Fuel Type: Electric
• Height: 22-1/2"
• Length: 22-1/2"

Air Dryer Specifications:

• Voltage: 115V
• Air Inlet Size: 3/4"
• Air Outlet Size: 3/4"
• Automatic Drain Valve Included
• Amperage: 11.8A

Pump Specifications:

• After Cooler Included
