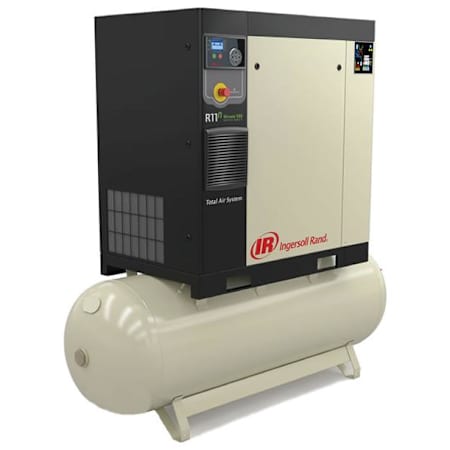

Ingersoll Rand 15 HP 80 Gal 145 Max PSI Stationary Electric (230 Volt 3 Phase) High Efficiency Air Compressor Total Air System

Product Information:

• Vertically-Stacked Drive Components
  • Airend is mounted above motor to reduce footprint
  • Improves balance & simplifies belt tensioning


• Total Air Compressor & Dryer System: Complete system delivers ISO 1-5-1 quality air


• 3-In-1 Heat Exchanger: Provides increased efficiency & reliability


• Xe Series Integrated Controller
  • Dryer cycling is controlled by compressor operation
  • Dryer alarms are fed back to the compressor controller


• Quiet Operation Develops 50.4 CFM At 145 PSI: 69 dBA allows for operation in limited-size workspaces


• Totally Enclosed Fan Cooled (TEFC) Motor: Minimizes thermal expansion effects


• Continuous Duty
  • Rotary screw produces steady air flow, day in, day out
  • Ideal for high demand commercial & industrial uses


• Fit-Anywhere Footprint
  • Base-plate footprint is 20% smaller than previous models
  • Air/oil separation to <5 ppm for peak air quality



Specifications:

• Fuel Type: Electric
• Height: 67"
• Width: 27"
• Length: 70"
• Product Weight: 650 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Air Dryer Included
• Filter Included

Tank Specifications:

• Tank Outlet Size: 3/4"
• Tank Size: 80

Pump Specifications:

• After Cooler Included
• Lubrication Type: Oil Lubricated
• CFM: 50
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 15 HP
• Voltage: 230V
