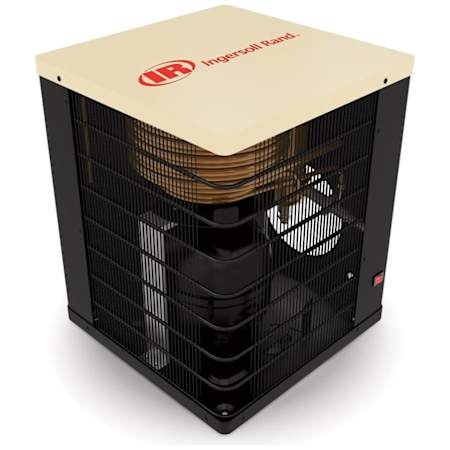

Ingersoll Rand 7 CFM Non-Cycling Refrigerated Air Dryer

Features:

• General purpose filter required in front of dryer for valid warranty
• For use with compressors with aftercoolers. Keeps damp air from rusting tools and washing away lubricants
• ISO Class 6 dryer is reliable and operationally efficient. Integral stainless steel moisture separation
• Continuous pressure Class H dew point performance. Optimized pressure 50 degrees F dew point. Temperature driven variable speed fan for continuous heat removal. Electronic solenoid drain valve for optimal performance
• User friendly controls: simple, easy to read control panel uses a color coded diagram. Environmentally friendly
• Uses 1 phase, 1.78 amp power. Sturdy, powder coated finish. Aluminum braze plate heat exchanger. Maximum pressure of 203PSI. 3/8" NPT inlet and outlet fittings. Installation of an upstream 1.0 micron prefilter is recommended

Specifications:

• Warranty: 1 Year
• Product Weight: 44.8 lbs
• Certifications:
  • CSA
  • UL
• Fuel Type: Electric
• Height: 21-1/4"
• Length: 14-15/16"
• Width: 17-1/2"

Air Tool Specifications:

• CFM: 7

Air Dryer Specifications:

• Voltage: 115V
• Air Inlet Size: 3/8"
• Air Outlet Size: 3/8"
• Automatic Drain Valve Included
• Amperage: 1.78A
• Horsepower: 3-1/2" HP

Tank Specifications:

• Electric Drain Valve Included
