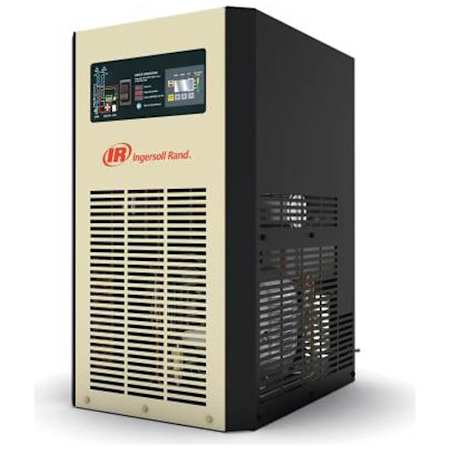

Ingersoll Rand 10 CFM Cycling Refrigerated Air Dryer with Filtration
Model: DB17ECA100G|Item: bci5202533
$1,969.99
Made To Order
Details
Features:
- Multi-layer heat exchanger: provides high heat transfer efficiency. Reduces compressor run time and energy costs
- Thermal mass cold energy storage: reduces dryer compressor run time
- Compact size. Premium components provide years of dependable operation
- Digital controller. Microprocessor automatically deactivates during low load times. Single point connections for plug-and-play installation
- Efficient refrigeration condenser. Dry, high quality compressed air with maximum energy savings
- R513a refrigerant. Zero ozone depletion potential minimizes environmental impact
- Drain isolation valve with timed solenoid drain. Automatic maintenance for ease of operation
- Perfect match for Ingersoll Rand high efficiency compressors. Effectively treats air when demand fluctuates on a regular basis. Uses only .35 operating kW per hour at full capacity
Specifications:
- Filter Included
- Warranty: 1 Year
- Product Weight: 130 lbs
- Fuel Type: Electric
- Height: 30"
- Length: 23"
- Width: 18-1/4"
Air Tool Specifications:
- CFM: 10
Air Dryer Specifications:
- Voltage: 115V
- Air Inlet Size: 1/2"
- Air Outlet Size: 1/2"
- Horsepower: 5" HP
Dimensions and Measurements
CFM | 10 |
Height | 30 in. |
Length | 23 in. |
Product Weight | 130 lbs. |
Width | 18.25 in. |
Dimensions and Measurements
CFM | 10 |
Height | 30 in. |
Length | 23 in. |
Product Weight | 130 lbs. |
Width | 18.25 in. |
Included Components
Filter Included | Yes |
Included Components
Filter Included | Yes |
Characteristics and Features
Air Dryer CFM | 10 CFM |
Air Dryer Included | Yes |
Air Inlet Size | 1/2" |
Air Outlet Size | 1/2" |
Alarm Light | Yes |
Automatic Drain Valve Included | No |
Electronic Drain Valve Included | No |
High Efficiency | Yes |
High Temperature | No |
Maximum Ambient Temperature | 113 °F |
Maximum Inlet Temperature | 120 °F |
Non-Cycling | No |
Regenerative | No |
Characteristics and Features
Air Dryer CFM | 10 CFM |
Air Dryer Included | Yes |
Air Inlet Size | 1/2" |
Air Outlet Size | 1/2" |
Alarm Light | Yes |
Automatic Drain Valve Included | No |
Electronic Drain Valve Included | No |
High Efficiency | Yes |
High Temperature | No |
Maximum Ambient Temperature | 113 °F |
Maximum Inlet Temperature | 120 °F |
Non-Cycling | No |
Regenerative | No |
Electrical and Operational Information
Air Dryer Voltage | 115 V |
Electrical Phases | 1 |
Fuel Type | Electric |
Horsepower | 5 |
Voltage | 115 |
Electrical and Operational Information
Air Dryer Voltage | 115 V |
Electrical Phases | 1 |
Fuel Type | Electric |
Horsepower | 5 |
Voltage | 115 |
Warranty and Product Information
Manufacturer Warranty | 1 Year |
Warranty and Product Information
Manufacturer Warranty | 1 Year |
