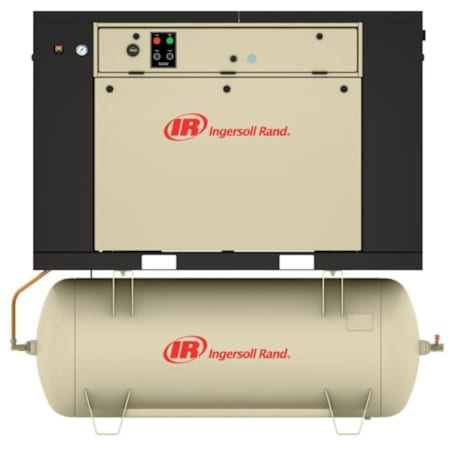

Ingersoll Rand 15 HP 120 Gal 175 Max PSI Quiet Enclosed Two-Stage Stationary Electric (460 Volt 3 Phase) Reciprocating Air Compressor

Product Information:

• IR Quiet Enclosed Continuous-Duty Operation Air Compressor
  • Built to last, engineered to improve return on investment
  • Industry-leading low dBA levels without sacrificing performance


• Cast-Iron Cylinders & Pump
  • Durable 100% cast iron design
  • Easy to repair removable cylinders with 360° radial fins eliminate hot spots


• Reliable Pump Components
  • 1-piece connection rod for less moving parts increases reliability
  • Precision-balanced overhung crankshaft runs smoothly and quietly
  • Oversized cast-iron balanced belt wheel and industrial-grade bearings


• Heavy-Duty Enclosure & Base
  • Weather resistant powder-coat finish
  • Vibration dampening via floating sub-base design
  • Service panels are provided for maintenance access and latch for safety


• High-Efficiency Parts
  • Stainless steel reed valves optimized for increased volumetric efficiency
  • 2-stage filtering for trouble-free clean air; Includes inlet filter and pad pre-filter
  • Finned copper intercooler and aftercooler reduces condensation and lowers air temperature


• 120-Gallon ASME Receiver
  • Certified to 200 PSI maximum pressure for safe operation
  • Lowers compressed air temperature and reduces condensation


• Electric Drain Valve
  • Reliable, easy-to-use EDV automatically removes moisture
  • Prevents rust and corrosion from compressor and other system components


• 1-Year Warranty (Unit Ships Dry): 1 or 2-year extended warranty available with purchase of IR Start Up Kit at time of purchase (See Accessories)

Specifications:

• Certifications: ASME, CSA, and UL
• Fuel Type: Electric
• Height: 74"
• Width: 34-5/16"
• Length: 75-5/8"
• Product Weight: 1776 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Filter Included

Tank Specifications:

• Electric Drain Valve Included
• Tank Outlet Size: 3/4"
• Tank Size: 120

Pump Specifications:

• After Cooler Included
• Oil System Type: Splash Lubricated
• Lubrication Type: Oil Lubricated
• CFM: 50
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 15 HP
• Amperage: 29A
• dB Rating: 67
• Voltage: 460V
• Voltage: 460V
