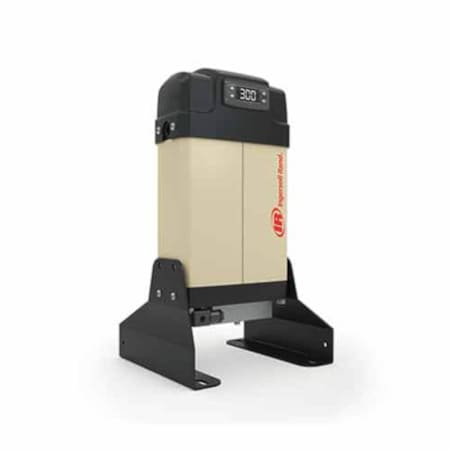

Ingersoll Rand DA40IM Modular Regenerative Desiccant Dryers with -100 Degrees Fahrenheit Dew Point (24 CFM)

Product Information:

• Innovative Modular Heatless Desiccant Dryer
  • Compact, fully integrated units ideal at point-of-use
  • Help prevent corrosion, minimize production disruptions & losses due to moisture or contamination


• Low -100°F Dew Point
  • Inlet/Outlet filters H/G grade supplied loose with fitting IP 54 / Type 1
  • Deliver ISO Class 2, Class 1 pressure dew point air for critical applications
  • High-strength desiccant, durable valves and components extend equipment life


• Reduced Energy Use & Interlock Function
  • Low pressure drop design saves on energy costs
  • Enables dryer to reduce timing of purge cycle based on compressed air demand
  • Controller monitors the cycle rate of the air compressor load/unload relay


• Advanced Digital Controller
  • Alarm and service reminders for added safety
  • On/resume, reset, navigation and information buttons
  • Visual display of dryer status, operating cycle information, configuration


• High Efficiency Prefilter & General Purpose Afterfilter
  • Removes dust, dirt, oil and water particles from air supply
  • Protect desiccant and downstream air from oil contamination and particulates


• Automatic Drain System
  • Accumulated water is removed without wasting air
  • Simple, low maintenance and quick connections


• Easy Installation and Maintenance
  • Compact footprint and low noise operation
  • Mount to the floor or wall with bolt holes provided in base frame
  • Quickly installed right in the work environment and easy maintained



Specifications:

• Warranty: 2 Year Commercial and 2 Year Residential
• Product Weight: 101.5 lbs
• Fuel Type: Electric
• Height: 38-1/8"
• Length: 18-11/16"

Air Dryer Specifications:

• Air Inlet Size: 3/4"
• Air Outlet Size: 3/4"
• Automatic Drain Valve Included

Pump Specifications:

• After Cooler Included
