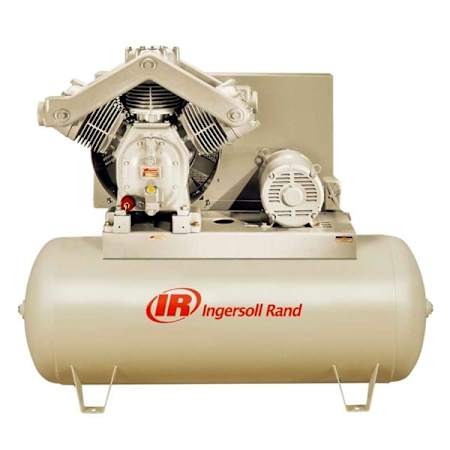

Ingersoll Rand 20 HP 120 Gal 175 Max PSI Two-Stage Stationary Electric (208 Volt 3 Phase) Fully Packaged Reciprocating Air Compressor

Product Information:

• Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift


• Full Package 2 Stage Air Compressor
  • 72 CFM provides power for commercial & industrial applications
  • Compressor may differ from picture


• Air Cooled Aftercooler & Finned Copper Intercooler: Pump runs cooler & lasts longer


• Automatic Tank Drain: Less maintainance, reduces air moisture, prevents rust


• Low Oil Cut-Off Switch: Protects pump if oil level falls too low


• Sturdy And Reliable
  • 100% cast iron cylinders meet the demands of commercial use
  • 1-piece connecting rods & centrifugal unloader last longer


• Magnetic Starter: No need to purchase separately, already mounted & wired


• 1-Year Warranty (Unit Ships Dry): 1 or 2-year extended warranty available with purchase of IR Start Up Kit at time of purchase (See Accessories)

Specifications:

• Fuel Type: Electric
• Height: 65"
• Width: 46"
• Length: 88"
• Product Weight: 1597 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Tank Specifications:

• Electric Drain Valve Included
• Tank Outlet Size: 3/4"
• Tank Size: 120

Pump Specifications:

• After Cooler Included
• Oil System Type: Splash Lubricated
• Lubrication Type: Oil Lubricated
• CFM: 72
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 20 HP
• Amperage: 62.1A
• Voltage: 208V
• Voltage: 208V
