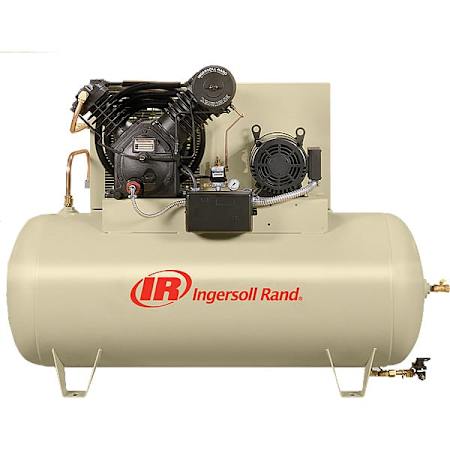

Ingersoll Rand 15 HP 120 Gal 175 Max PSI Two-Stage Stationary Electric (460 Volt 3 Phase) Fully Packaged Reciprocating Air Compressor
Model: 45466232|Item: bci5130418
$10,249.99
Made To Order
Details
Specifications:
- Certifications: ASME, CSA, and UL
- Fuel Type: Electric
- Height: 57"
- Width: 41"
- Length: 72"
- Product Weight: 1297 lbs
- Warranty: 1 Year Commercial and 1 Year Residential
Tank Specifications:
- Electric Drain Valve Included
- Tank Outlet Size: 3/4"
- Tank Size: 120
Pump Specifications:
- After Cooler Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 50
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 15 HP
- Amperage: 21A
- Voltage: 460V
- Voltage: 460V
Dimensions and Measurements
CFM | 50 |
Height | 57 in. |
Length | 72 in. |
Product Weight | 1297 lbs. |
Width | 41 in. |
Dimensions and Measurements
CFM | 50 |
Height | 57 in. |
Length | 72 in. |
Product Weight | 1297 lbs. |
Width | 41 in. |
Characteristics and Features
After Cooler Included | Yes |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | Yes |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | No |
Oil System Type | Splash Lubricated |
Pump Low Oil Shutdown | Yes |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/4" |
Tank Size | 120 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | Yes |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | Yes |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | No |
Oil System Type | Splash Lubricated |
Pump Low Oil Shutdown | Yes |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/4" |
Tank Size | 120 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 21 |
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 15 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 460 |
Electrical and Operational Information
Amperage | 21 |
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 15 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 460 |
Warranty and Product Information
Certifications | ASME, CSA, UL |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
Warranty and Product Information
Certifications | ASME, CSA, UL |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
