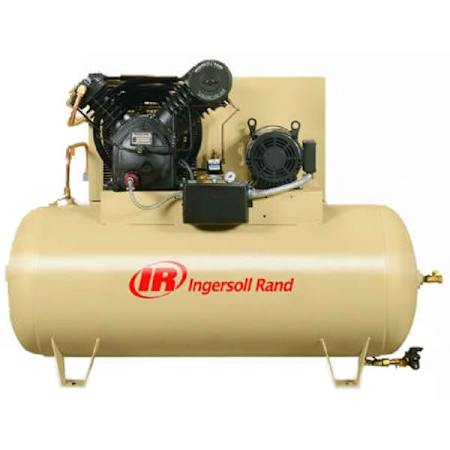

Ingersoll Rand 15 HP 120 Gal 175 Max PSI Two-Stage Stationary Electric (208 Volt 3 Phase) Fully Packaged Reciprocating Air Compressor

Product Information:

• Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift


• Full Package 2 Stage Air Compressor
  • E-series motor starter (mounted & wired) ready to go
  • Relief valve & discharge ball valve (mounted & piped)
  • Air cooled aftercooler (mounted & piped) reduces moisture
  • Electric drain valve (mounted & piped) for easy maintenance
  • Dual control - start/stop or constant speed meets your needs


• Continuous-Duty Operation
  • Durable 100% cast-iron cylinders and pump
  • Oversized cast-iron balanced belt wheel for reliable operation
  • Oversized industrial-grade bearings run cooler, last longer


• V-Block Deep Finned Cylinders: Provides 360 degrees cooling for lower operating temperature


• OSHA Compliant
  • Fully enclosed flywheel, belt and motor sheave
  • Protects the belt & the operator


• Fully Tested
  • All units are prewired and throughly tested prior to shipment
  • Arrives ready for your installation


• 1-Year Warranty (Unit Ships Dry): 1 or 2-year extended warranty available with purchase of IR Start Up Kit at time of purchase (See Accessories)

Specifications:

• Certifications: ASME
• Fuel Type: Electric
• Height: 65"
• Width: 36"
• Length: 83"
• Product Weight: 1297 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Tank Specifications:

• Electric Drain Valve Included
• Tank Outlet Size: 3/4"
• Tank Size: 120

Pump Specifications:

• After Cooler Included
• Oil System Type: Splash Lubricated
• Lubrication Type: Oil Lubricated
• CFM: 50
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 15 HP
• Amperage: 48.3A
• Voltage: 208V
• Voltage: 208V
