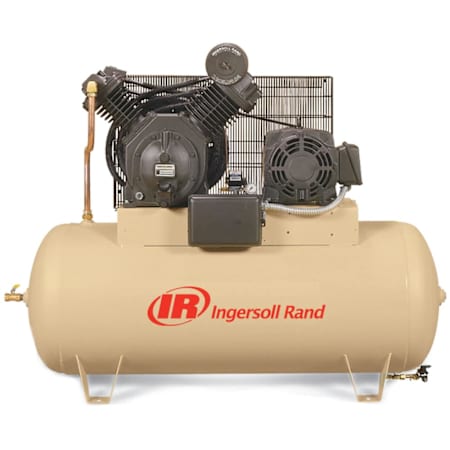

Ingersoll Rand 15 HP 120 Gal 175 Max PSI Two-Stage Stationary Electric (460 Volt 3 Phase) Value Plus Package Reciprocating Air Compressor

Product Information:

• Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift


• Durable Cast Iron Design: Provides 100% duty operation


• Precision Engineered Components: Deliver maximum performance & reliability


• Individually Cast Cylinders & Overhung Crankshaft
  • One-piece connecting rod for easy maintenance & service
  • High efficiency finger valves provide consistent air delivery


• Value Pro Package
  • Electric drain keeps condensation to a minimum
  • Air cooled aftercooler for less line moisture


• 175 PSIG Maximum Operating Pressure: Ideal for applications requiring high air capacity & pressure


• 1 Year Factory Warranty
  • Extends to 2 years using IR All Season Select Synthetic lubricant
  • IR Start Up Kit must be added at time of air compressor purchase


• Mounted Motor Starter Included: No need to purchase an additional starter


• Vibration Isolators Sold Separately
  • IR Installation Kit also includes foundation bolts & hose
  • Extends tank warranty to 5 years when added at time of purchase


• 1-Year Warranty (Unit Ships Dry): 1 or 2-year extended warranty available with purchase of IR Start Up Kit at time of purchase (See Accessories)

Specifications:

• Certifications: ASME
• Fuel Type: Electric
• Height: 65"
• Width: 36"
• Length: 83"
• Product Weight: 1297 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Tank Specifications:

• Electric Drain Valve Included
• Tank Outlet Size: 3/4"
• Tank Size: 120

Pump Specifications:

• After Cooler Included
• Oil Sight Glass Included
• Oil System Type: Splash Lubricated
• Lubrication Type: Oil Lubricated
• CFM: 50
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 15 HP
• Amperage: 21A
• Voltage: 460V
• Voltage: 460V
